> DYNAMO REPLACEMENT GENERATORS

« Light up your bike! »

We make generators for BSA, Triumph, Matchless, Vincent, Velocette, AJS and others that neatly replace the existing 3” dynamo making that flat battery feeling a thing of the past. With an Alton generator you can be sure of good quality lighting plus a well-charged battery. Finished the days when you had to garage your bike from October to March.

What do our generators do?

Alton 12 volt A.C. generators replace the 3 inch dynamos fitted on British classic and vintage motorbikes. While running at moderate cruising speeds they supply an output of 85 to 90 watts (maximum output of 150 watts) they supply sufficient energy to have lighting that conforms to modern expectations, coil ignition if you want it and a well-charged battery.

Using permanent magnet brushless technology, Alton has created a maintenance-free, easy-to-fit solution to the problems associated with dynamos. Plus it’s simple to install our generators, we supply full instructions and wiring diagrams. The rectifier-regulators can be connected for negative or positive earth systems and again instructions are supplied showing how to do it. In all cases we are available by telephone and email to answer any technical questions and we offer English speaking back-up and two years guarantee.

Will it look out of place?

No because we have designed our generators to be as authentic looking as possible – down to the logo, we have tried to match the form without sacrificing the function. They have the same dimensions as the original dynamos with a close to genuine appearance. Each model is supplied with a mounting kit ensuring it fits into the same space as the original part.

The main difference is weight, with the Alton generator at 1.3 kilos (around 3 lbs) against the typical dynamo weighting in at a hefty 3 kilos (well over 6 lbs).

Downloadable documents:

Summary which generator suits which motorcycles

ac-12v-generator-suitable-on-..

Generator fitting instructions

alton-doc-schema-2018-gb-1

MODELS

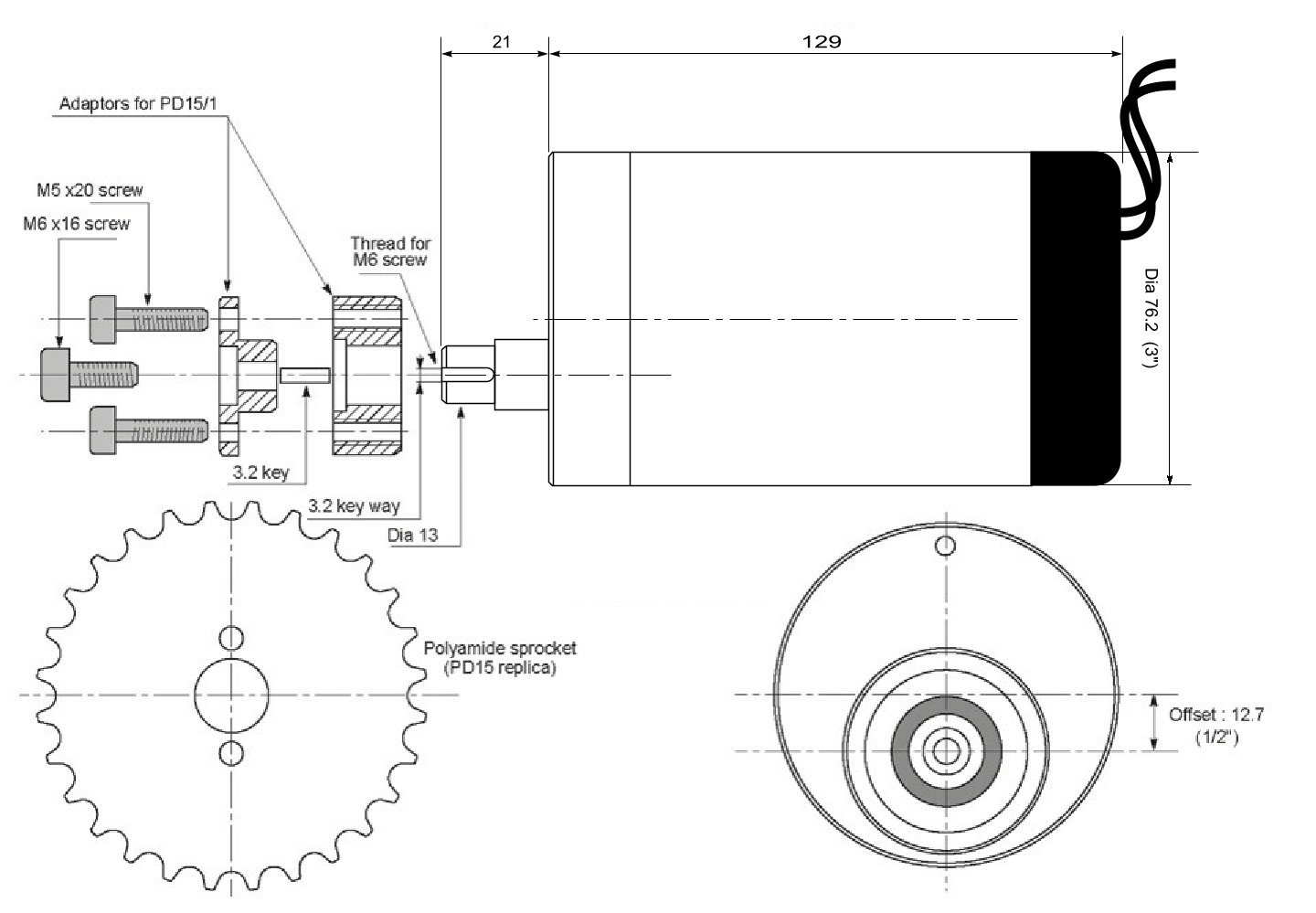

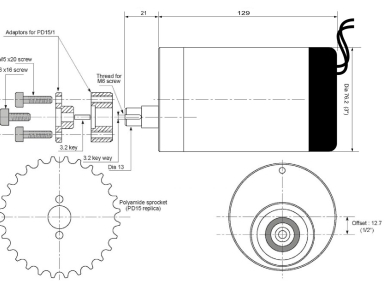

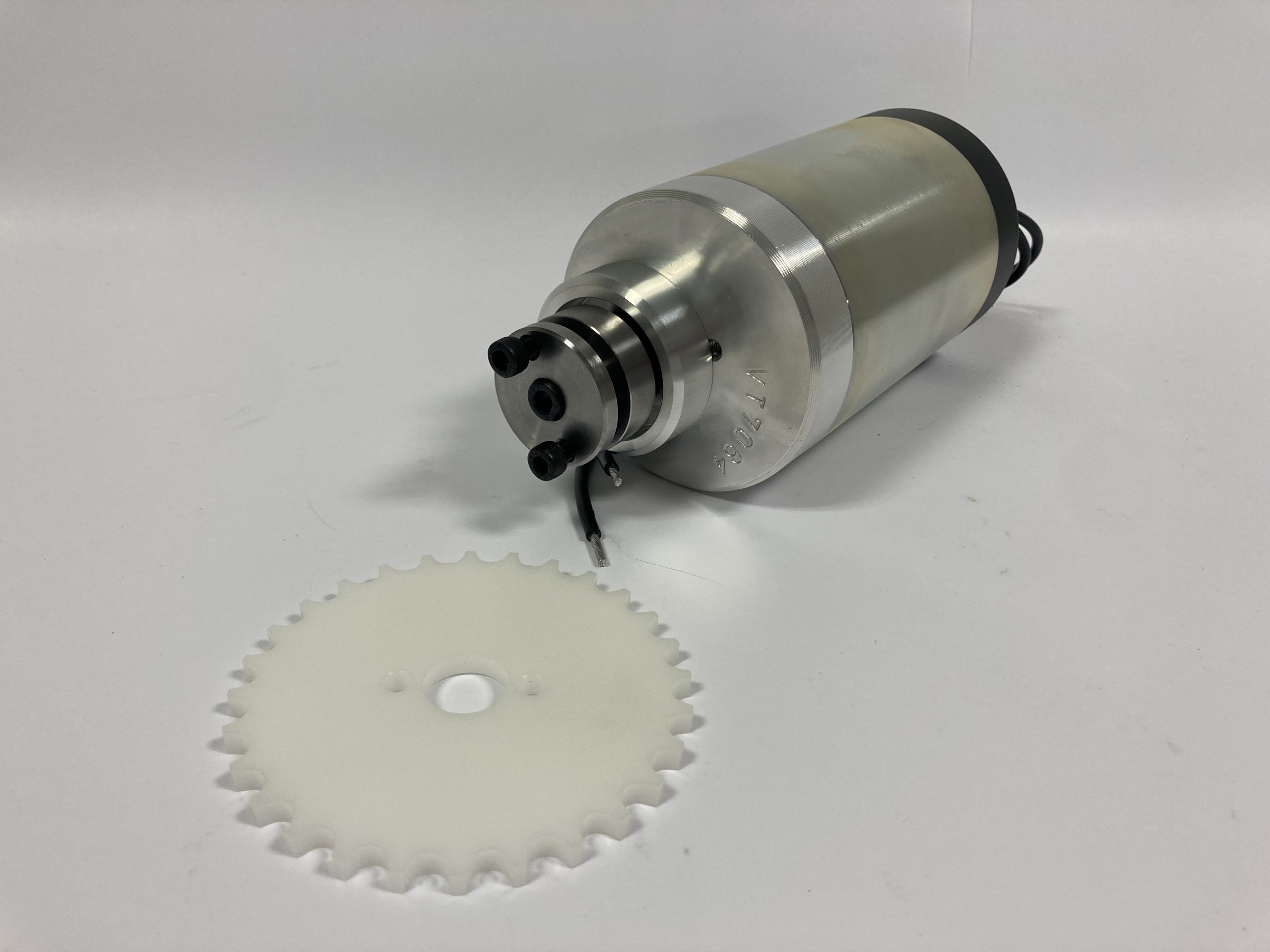

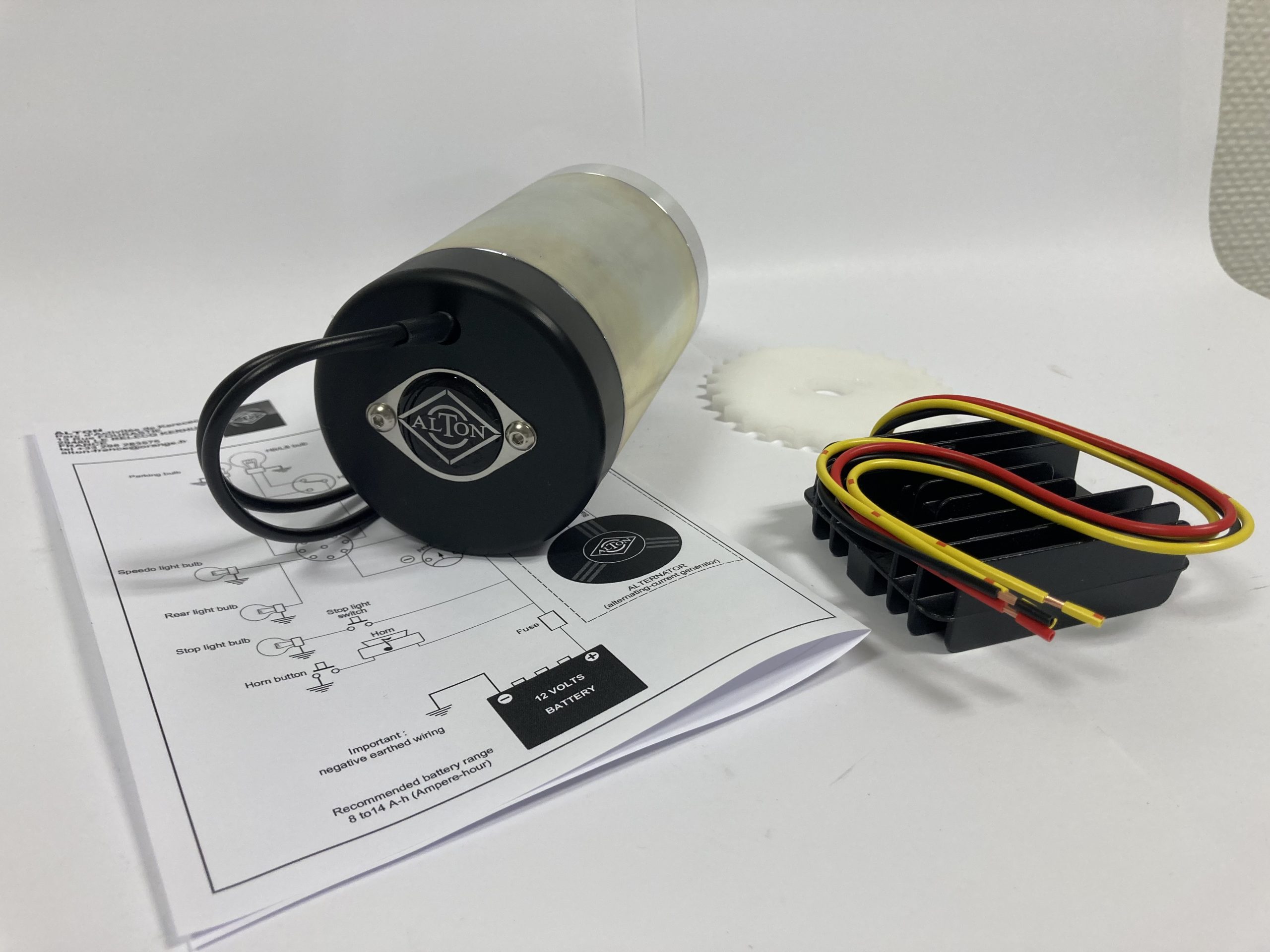

ALTON ACG01 – Vincent twin

Suitable for all Vincent Twins, Vincent Rapide, Black Shadow, Black Knight, Black Prince…

The set includes a polyamide replica of PD15 drive sprocket.
Each generator set comes with its rectifying-regulator.

alton-acg05-for-magdyno

ALTON ACG05
Magdyno
Disponibilité : immédiate

alton acg06 bsa with belt

ALTON ACG06
BSA A7, A10, Ariel Huntmaster, livré avec kit courroie
Disponibilité : Immédiate

alton-acg06c-bsa-avec-pignon–chaine

ALTON ACG06C
BSA A7, A10, Ariel Huntmaster, livré avec pignon à chaine
Disponibilité : Immédiate

alton-acg07-ajs-matchless-monocylindre

ALTON ACG07
AJS Matchless monocylindre
Disponibilité : Immédiate

alton-acg08-norton-twin-88-99

ALTON ACG08
NORTON twin (88 / 99)
Disponibilité : Immédiate

alton-acg09-amc-ajs-matchless-bicylindres

ALTON ACG09
AMC AJS MATCHLESS
bicylindre
Disponibilité : Immédiate

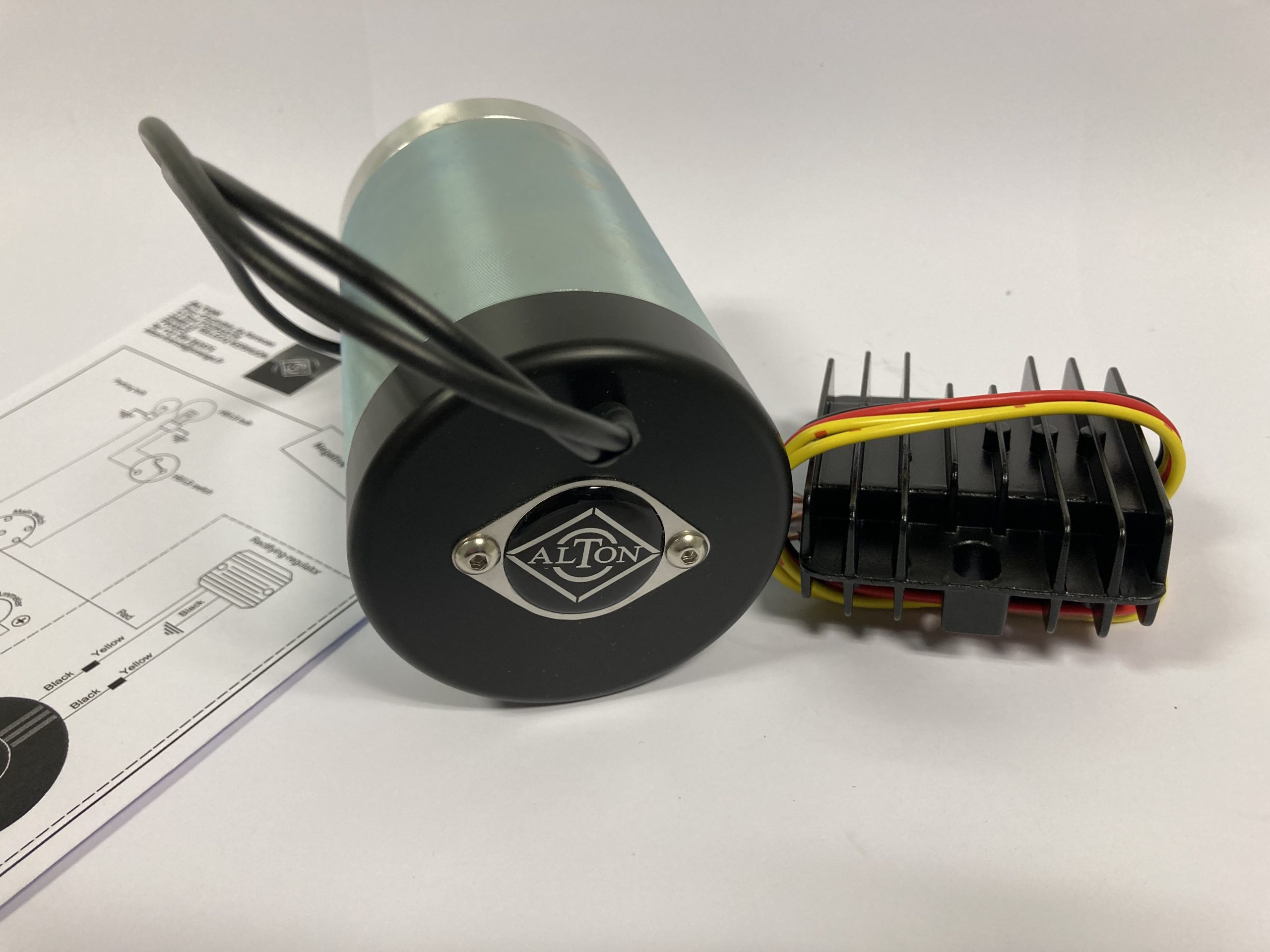

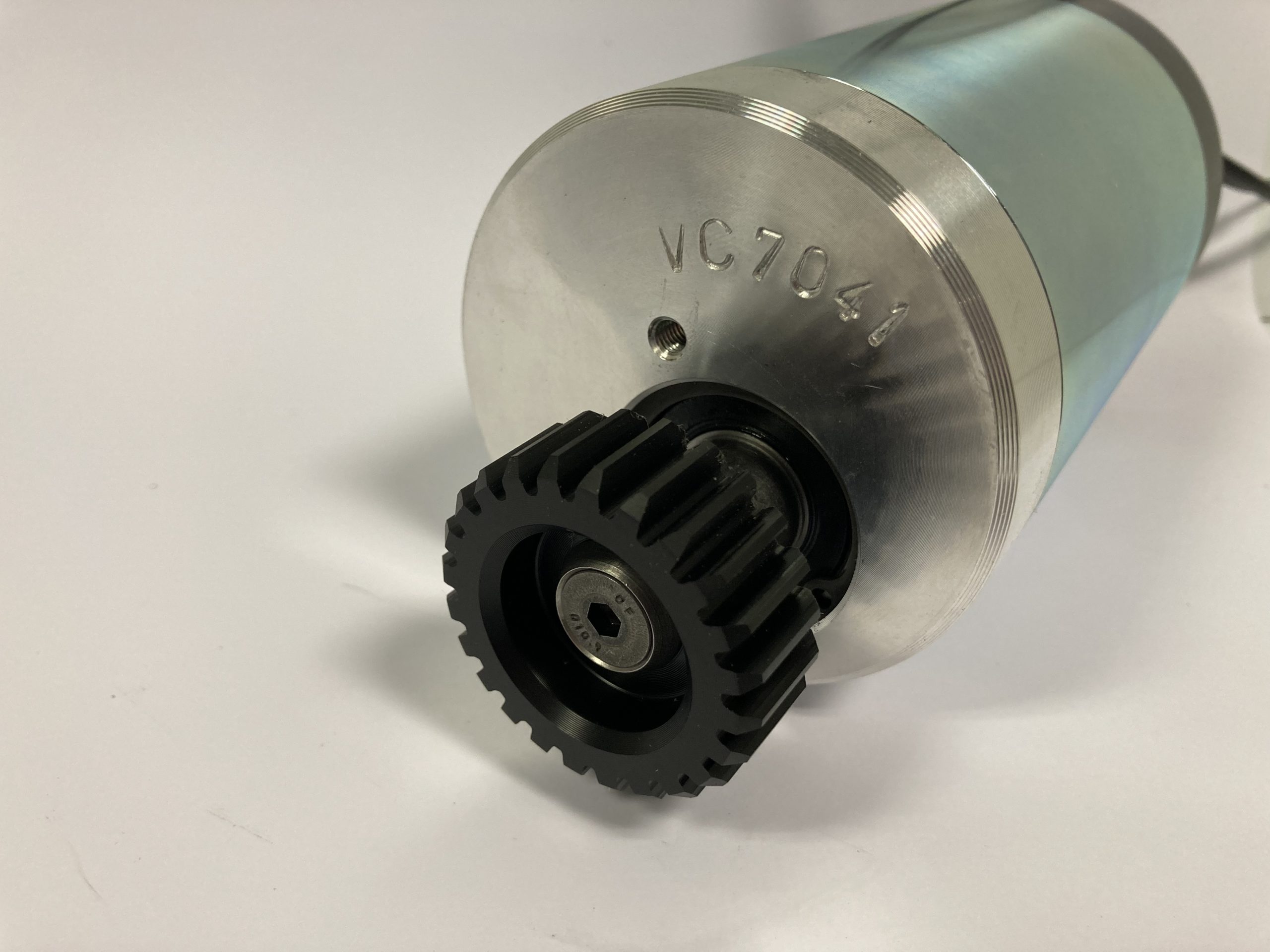

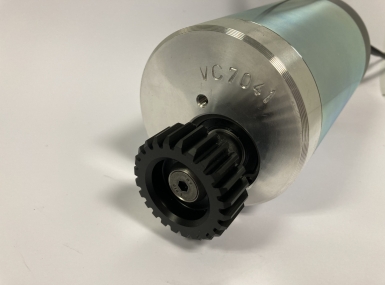

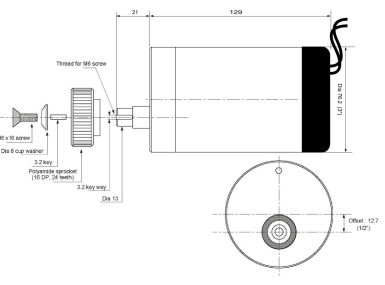

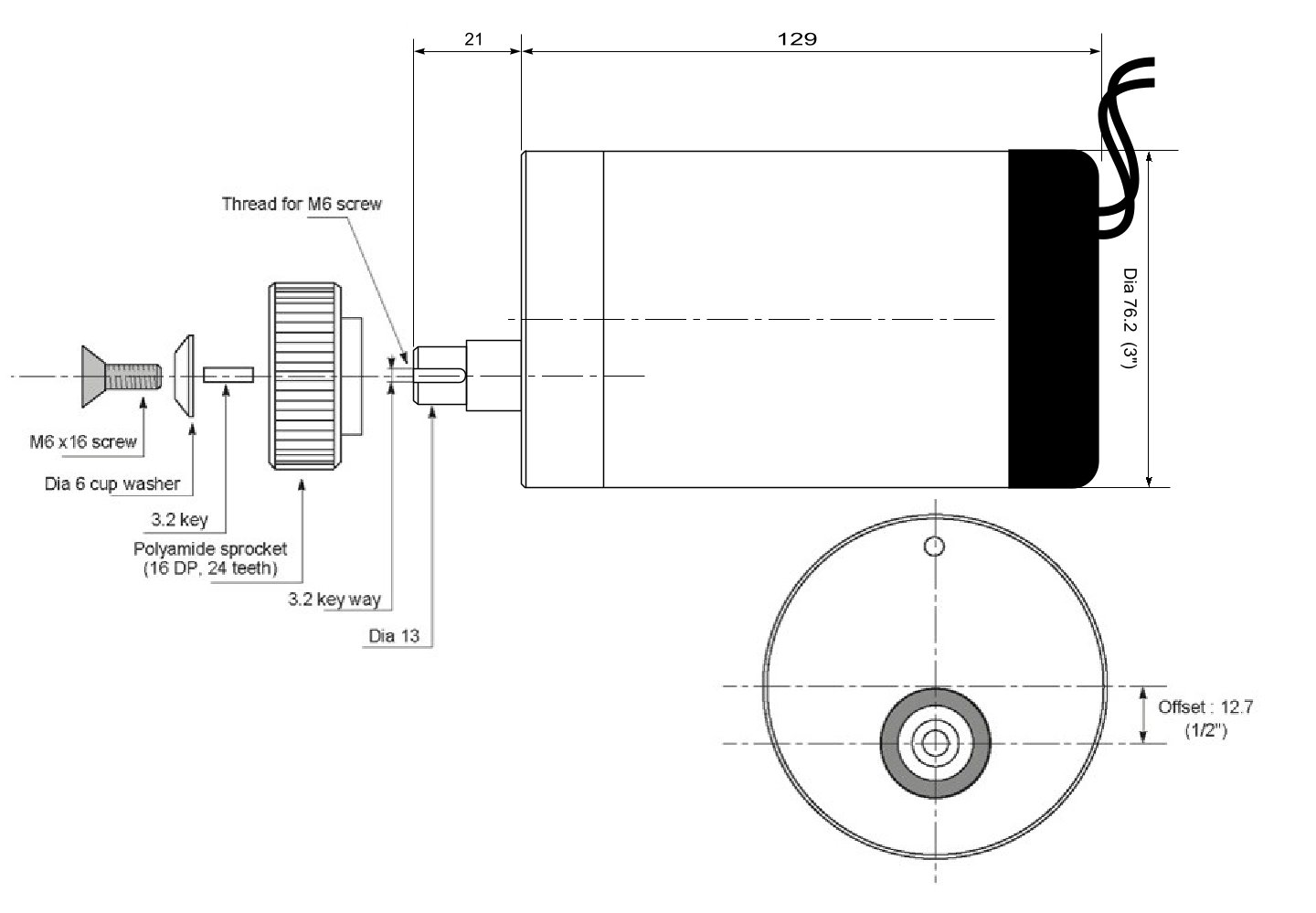

ALTON ACG02 – Vincent Comet

Suitable for Vincent Comet, Vincent Meteor.

The set includes a polyamide drive sprocket.
Each generator set comes with its rectifying-regulator.

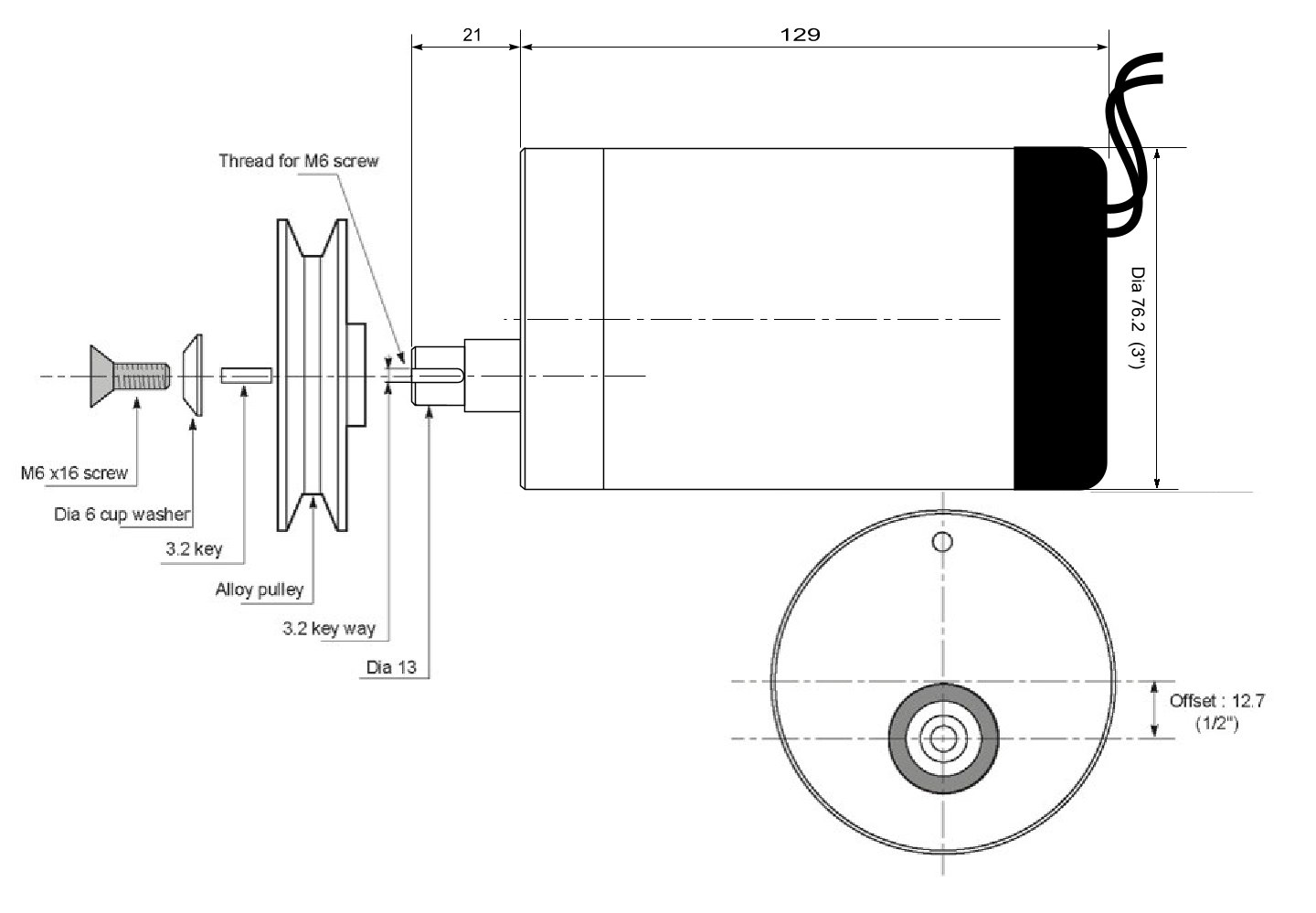

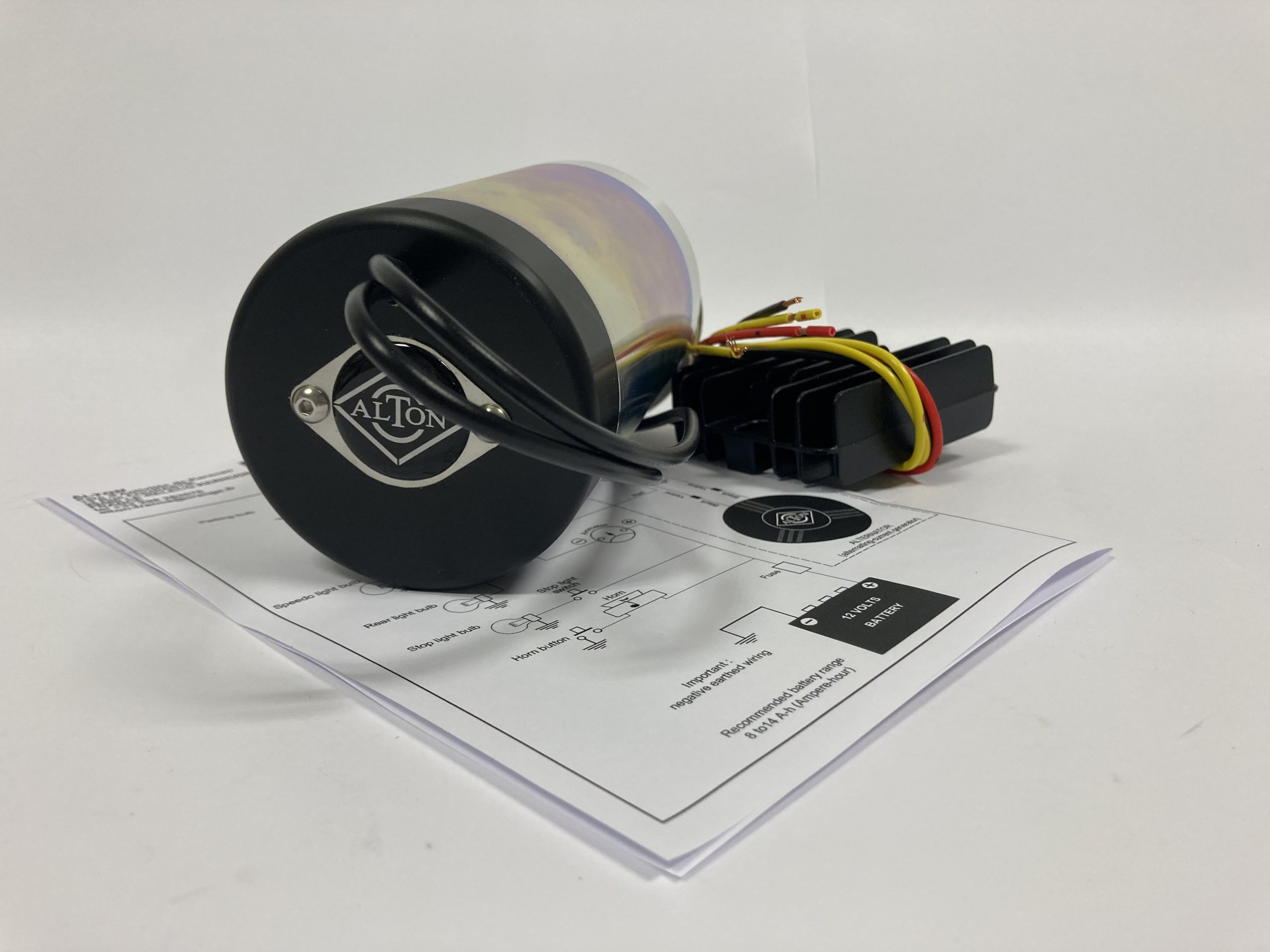

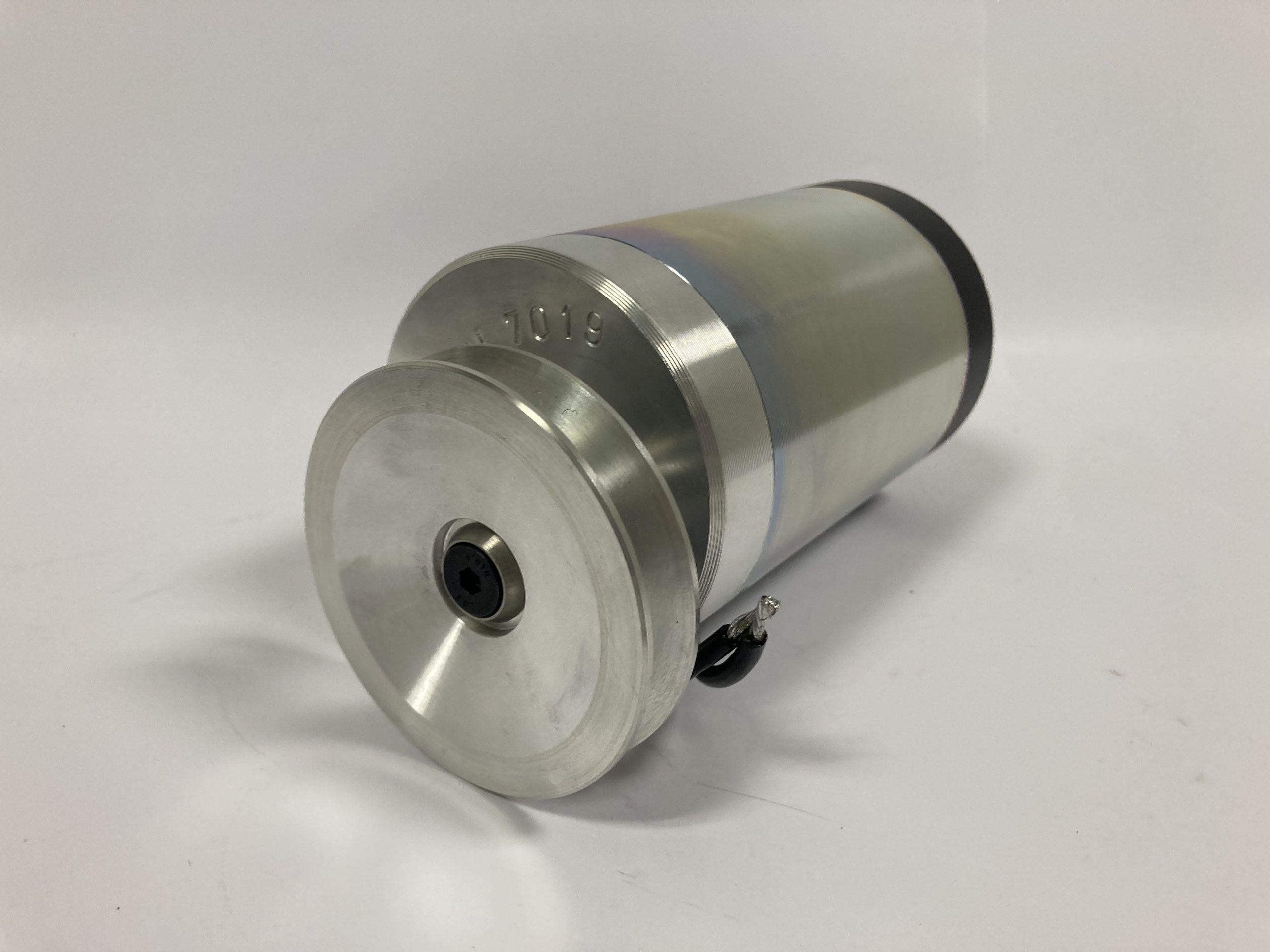

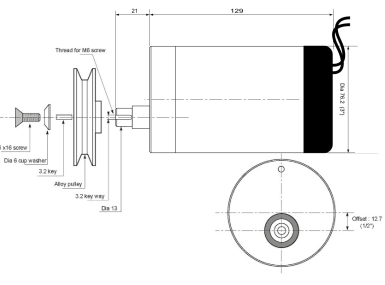

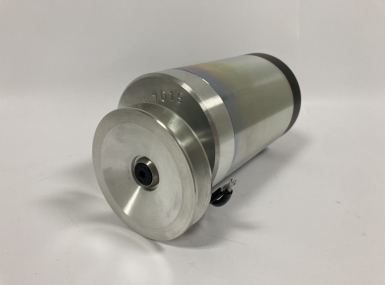

ALTON ACG03 – Velocette

Suitable for all Velocette Mac, Viper, Venom, Thruxton…

The set includes the drive pulley.
Each generator set comes with its rectifying-regulator.

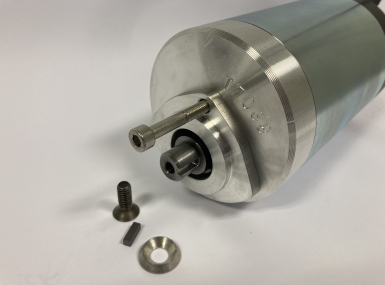

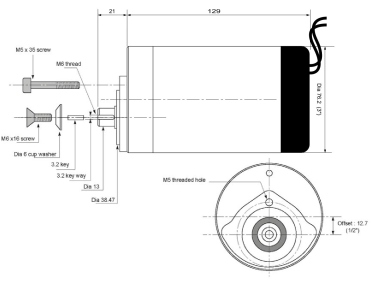

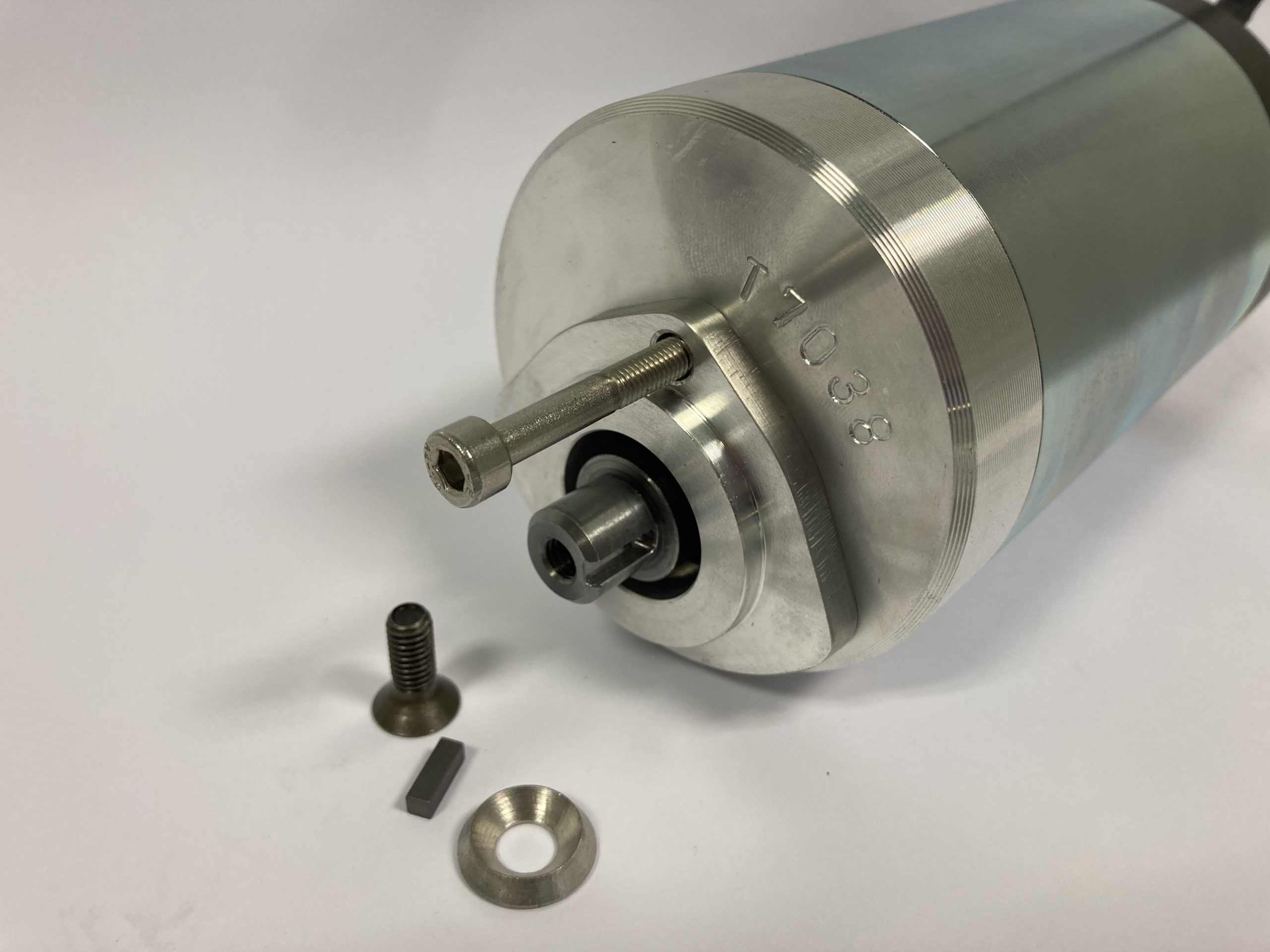

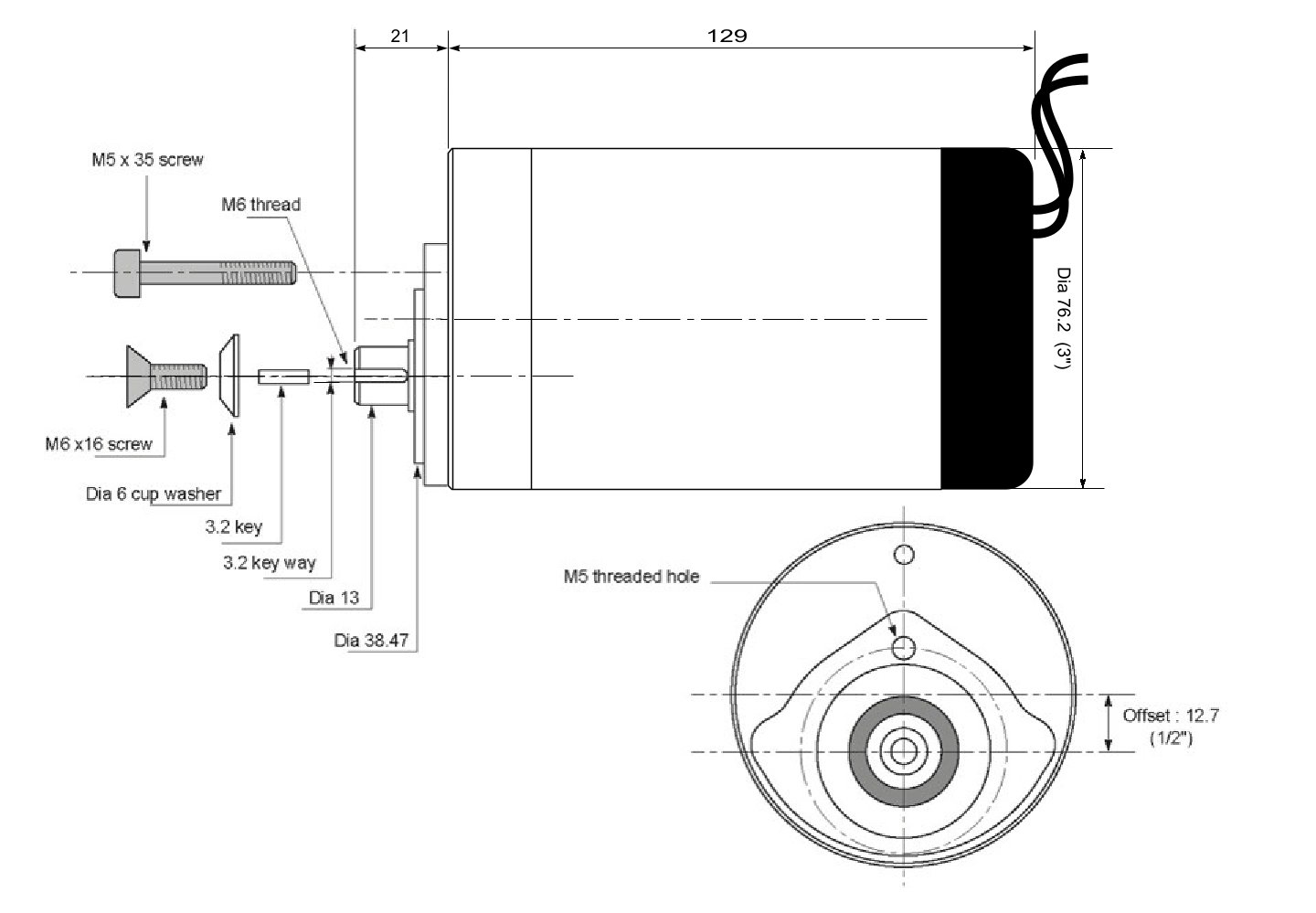

ALTON ACG04 – Triumph

Suitable for any Pre-unit Triumph, Tiger 100, 6T Thunderbird, 5T Speed Twin.
Suitable also for Ariel Fieldmaster KG and KH

The set does not includes the drive sprocket.
Each generator set comes with its rectifying-regulator.

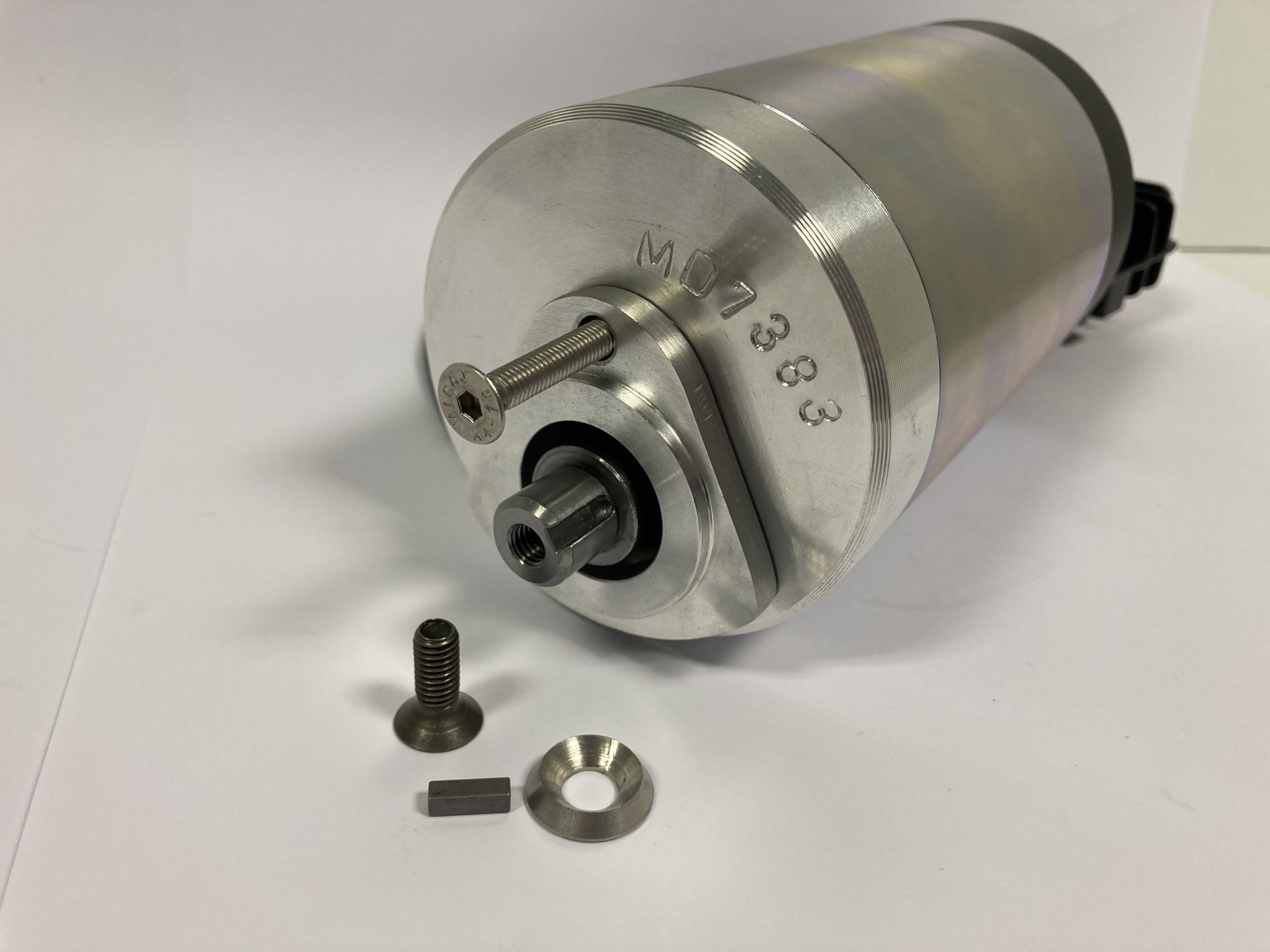

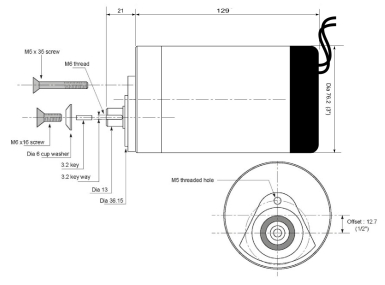

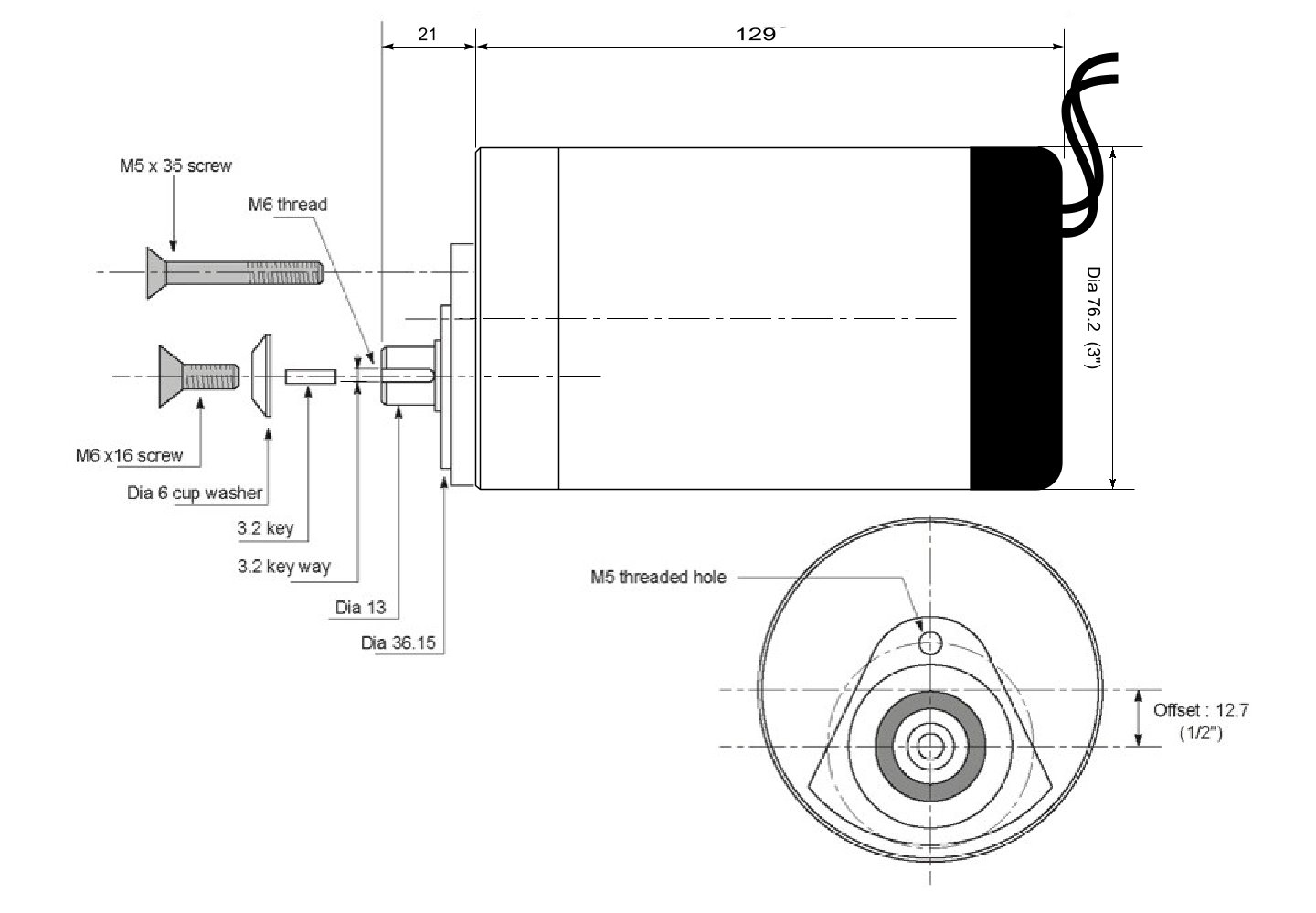

ALTON ACG05 – Magdyno

Suitable for magdyno equipped motorcycles.

Suitable for Ariel Red Hunter (250-350-500cc singles), Ariel VB600,

BSA M20, M21, B31, B32, B33, B34, Gold Star DB34 & DBD34…
Norton model 50, Norton ES2 (up to 1958), Panther Model 100 & 120, Royal Enfield Bullet.

The set does not includes the drive sprocket.
Each generator set comes with its rectifying-regulator.

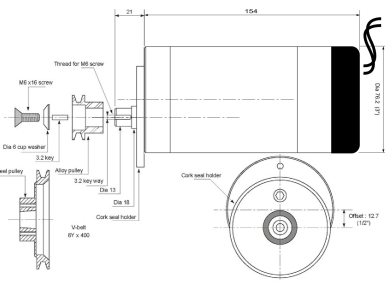

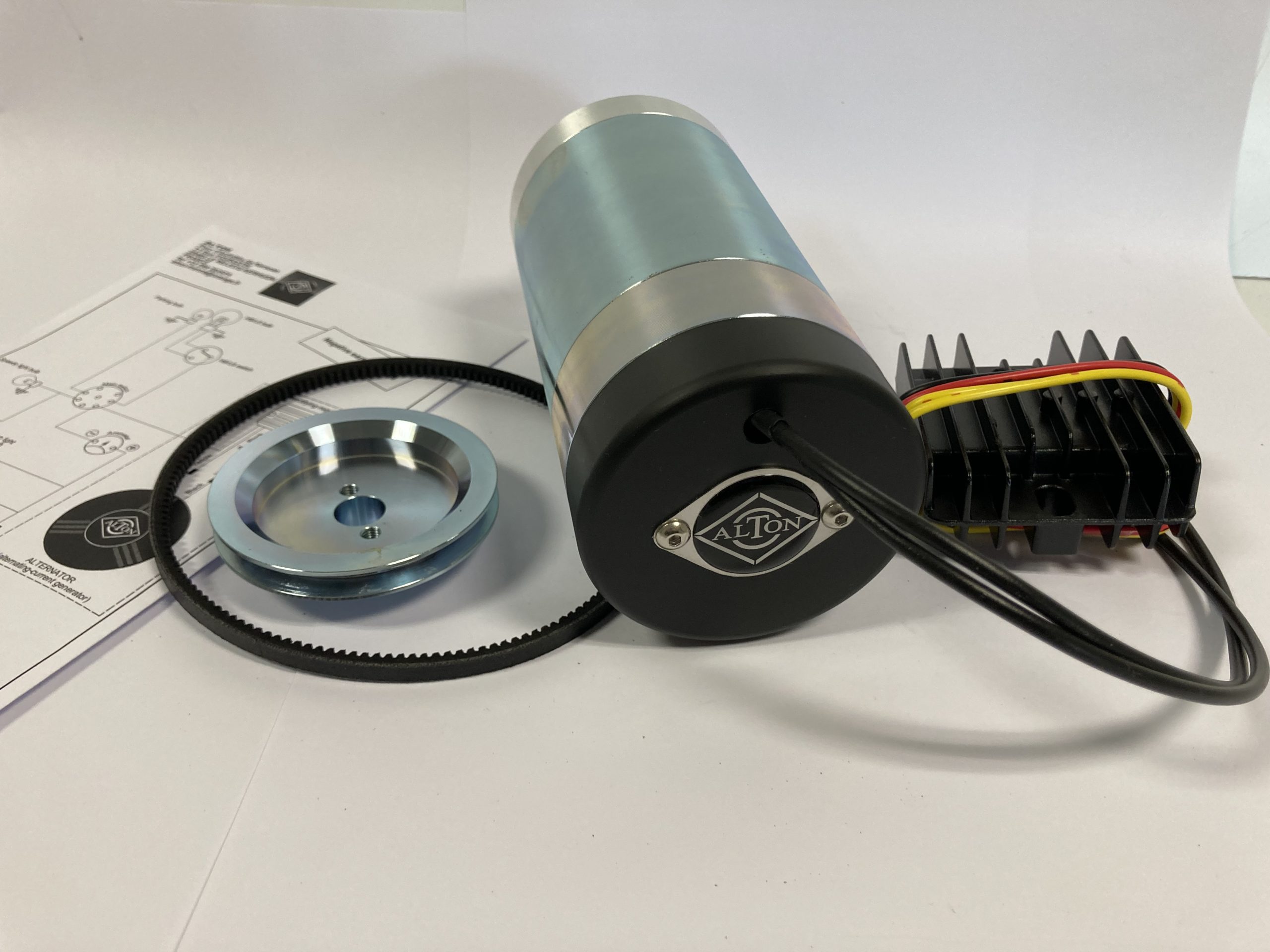

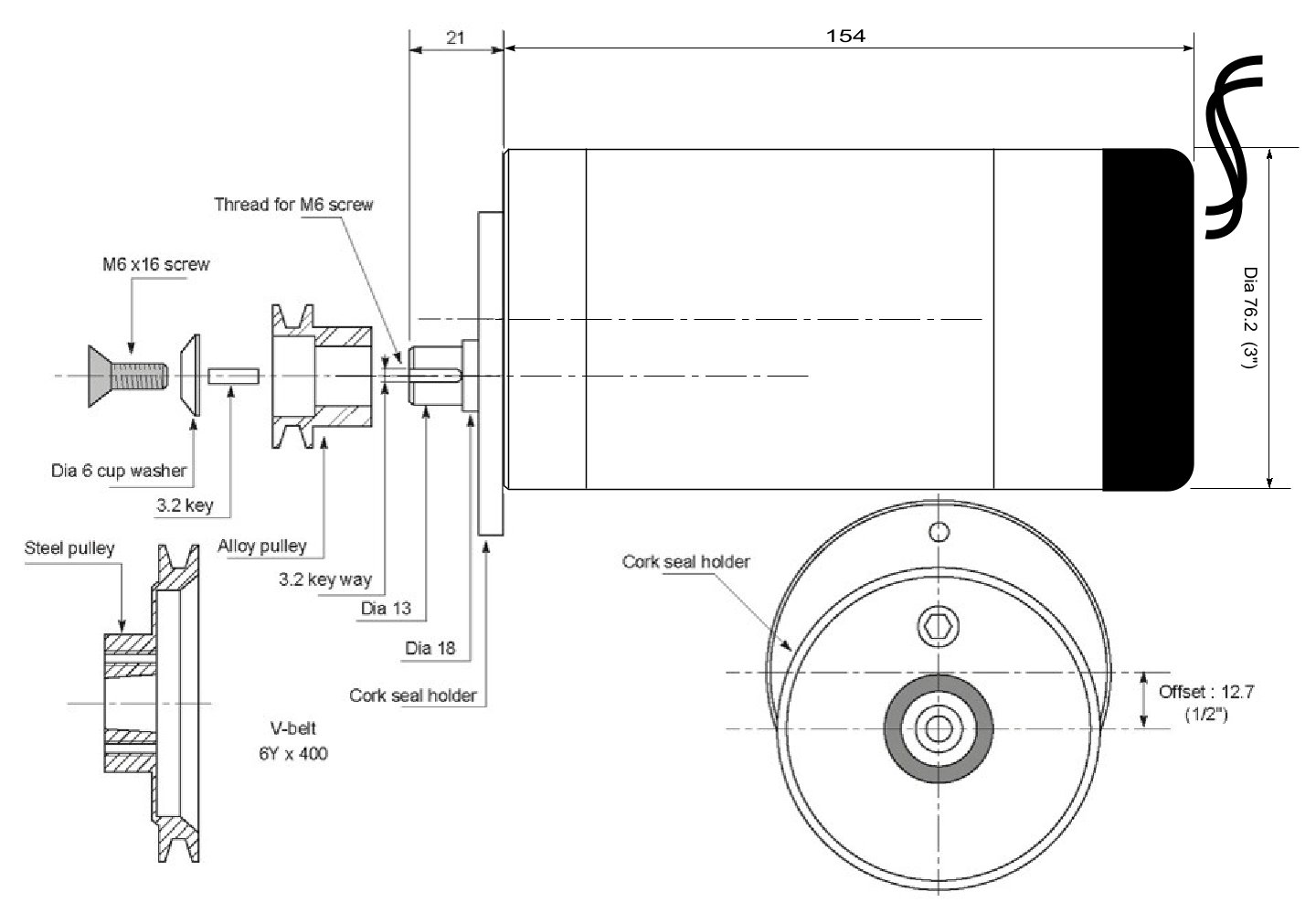

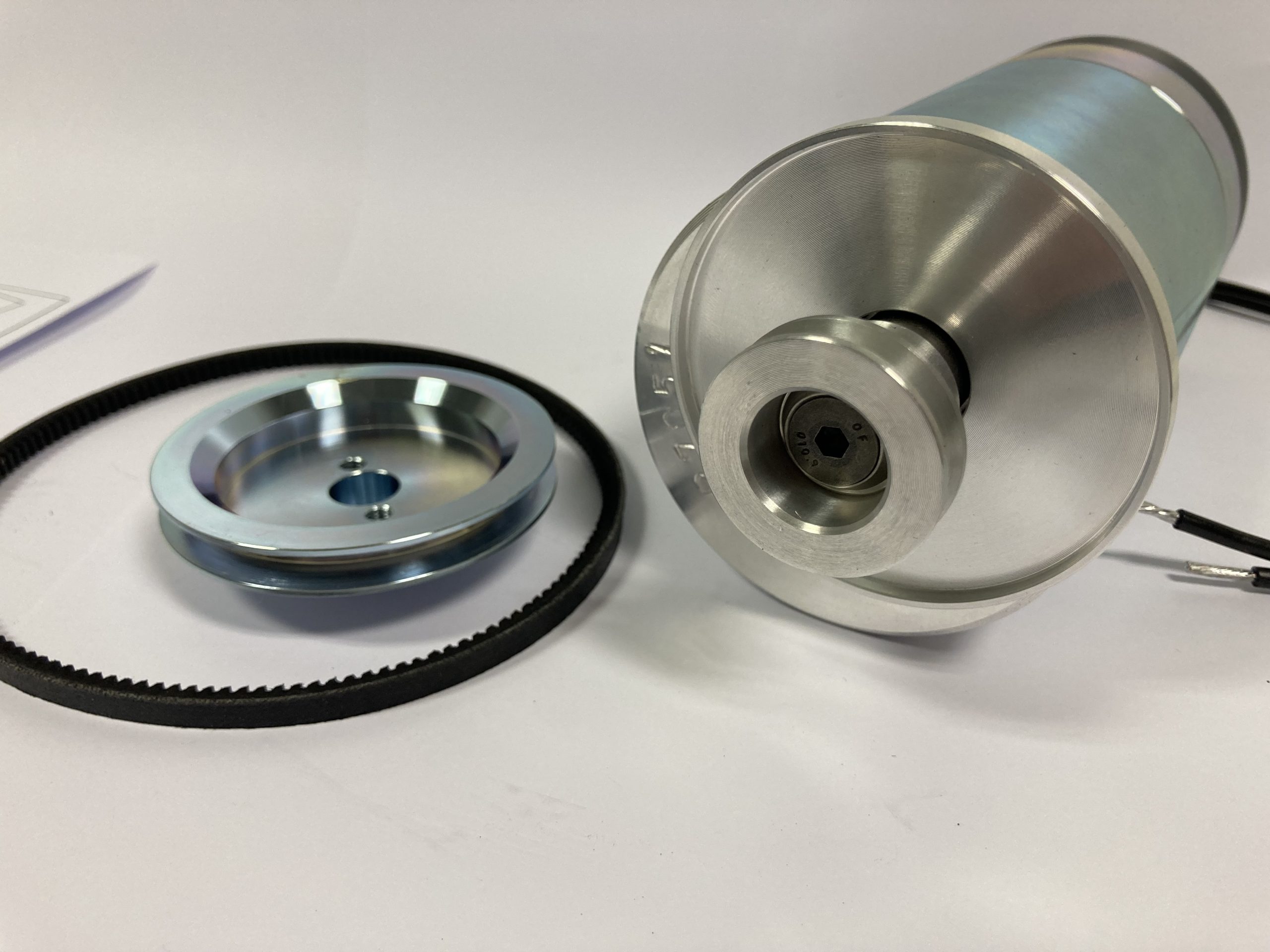

ALTON ACG06 – BSA

Suitable for BSA A7, A10 Golden Flash, Rocket Gold Star, Super Rocket, Road Rocket, Golf Star, Spitfire Scrambler.
Suitable on Ariel Huntmaster

The set includes v-belt drive kit.
Each generator set comes with its rectifying-regulator.

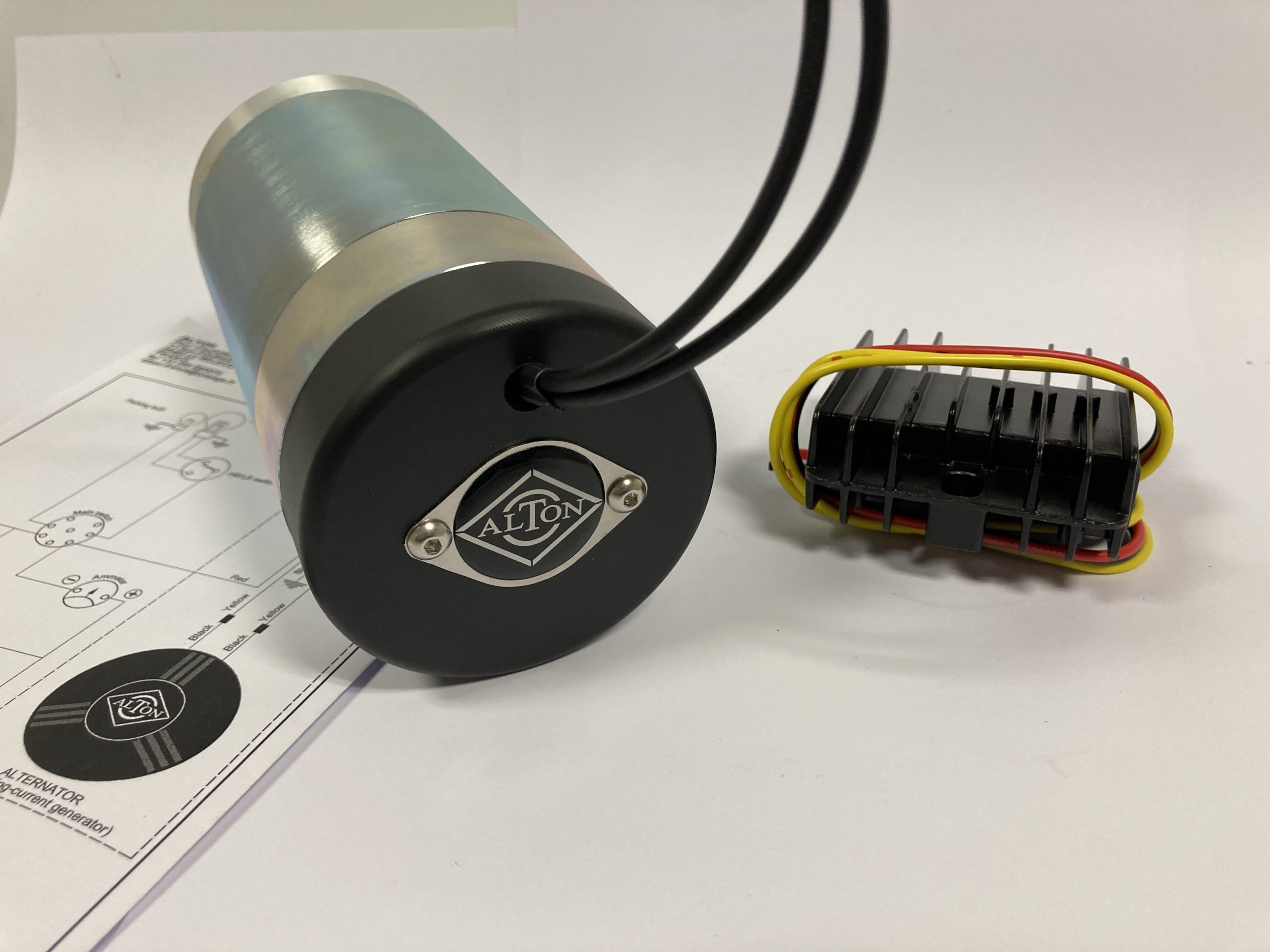

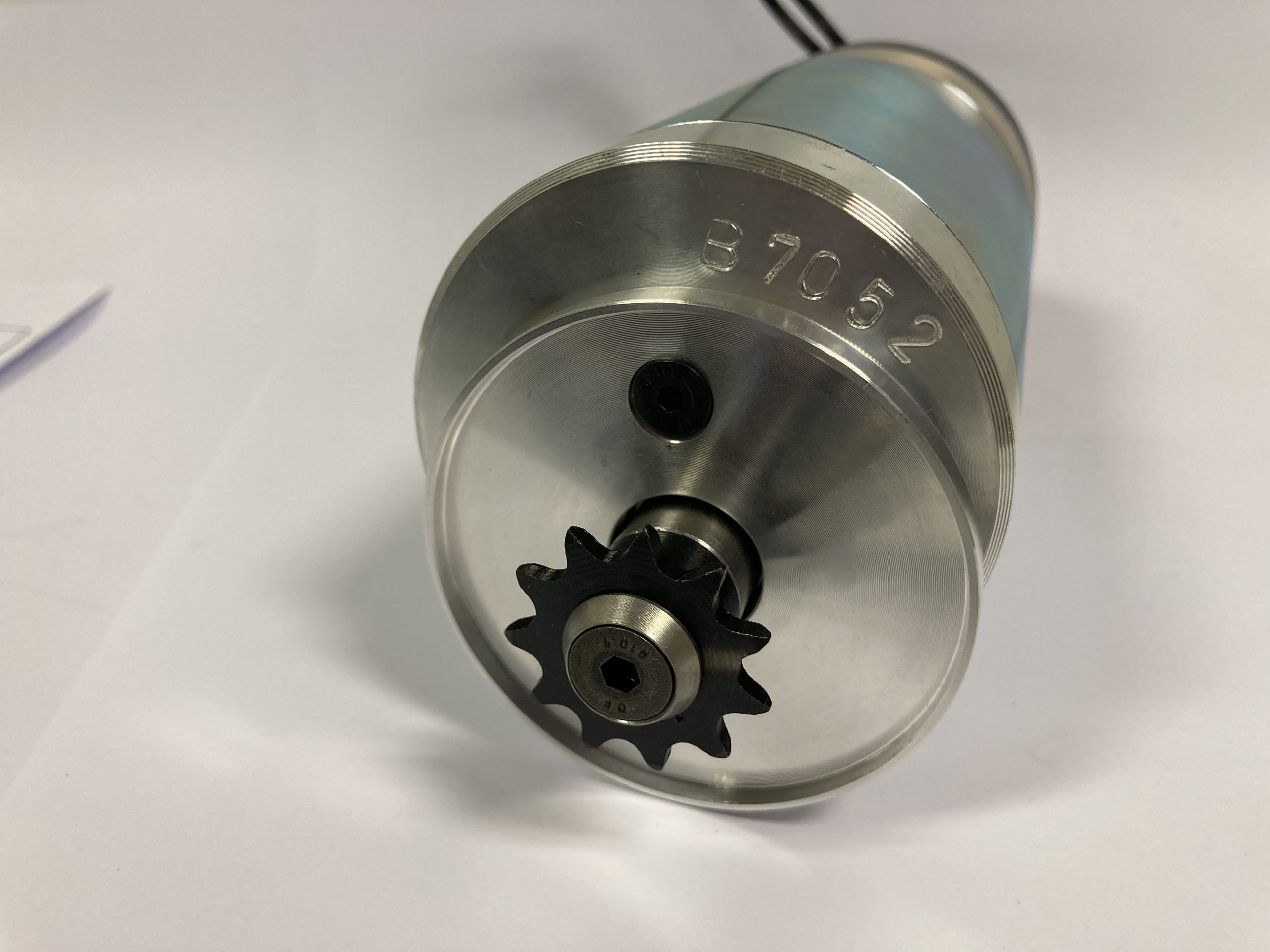

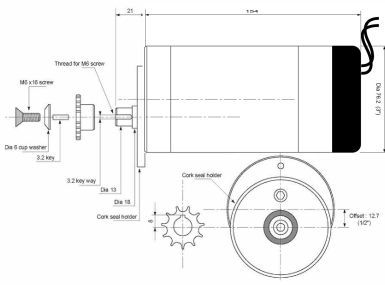

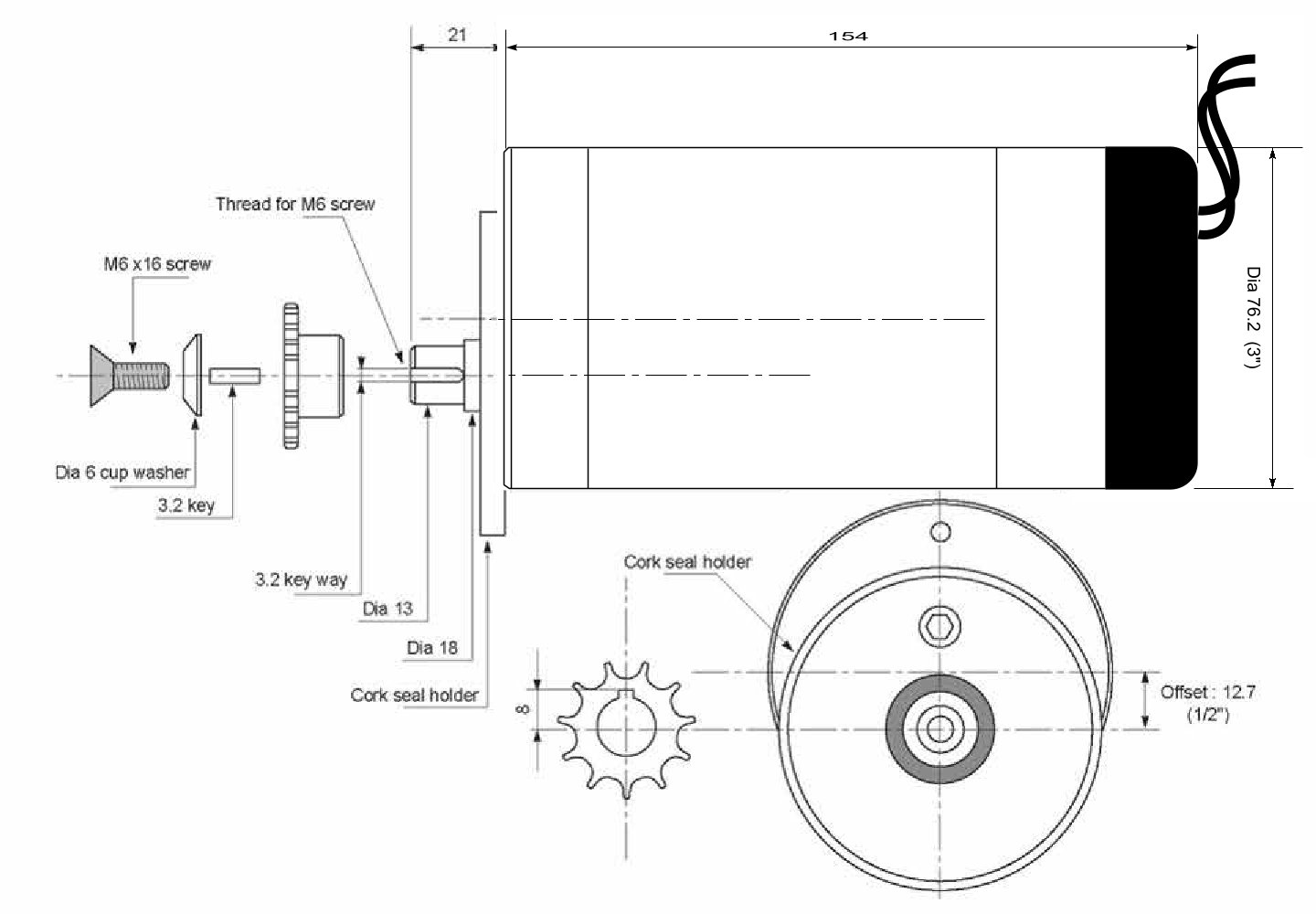

ALTON ACG06C – BSA

Suitable for BSA A7, A10 Golden Flash, Rocket Gold Star, Super Rocket, Road Rocket, Golf Star, Spitfire Scrambler.
Suitable on Ariel Huntmaster

The set includes 11 tooth sprocket.
Each generator set comes with its rectifying-regulator.

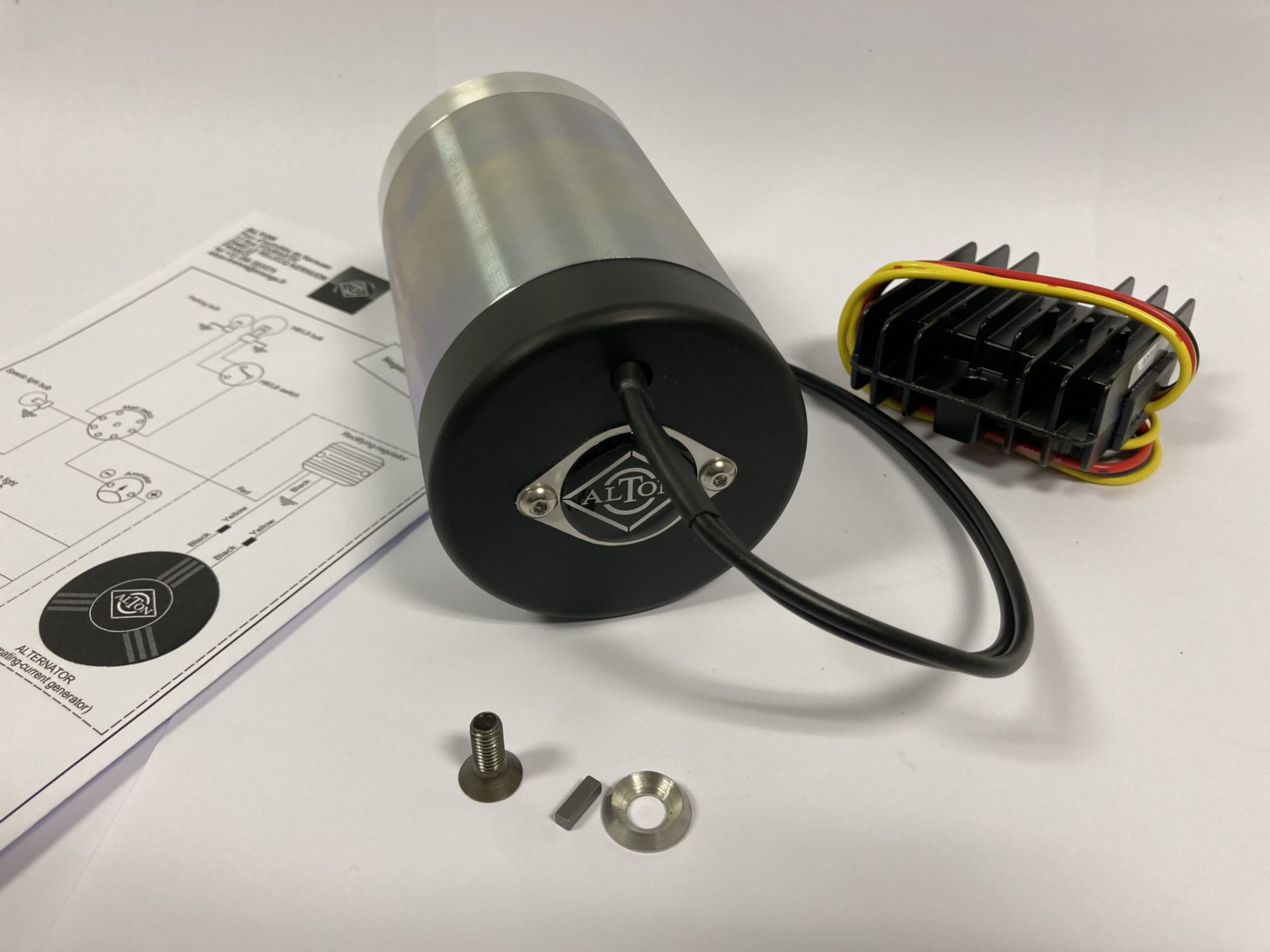

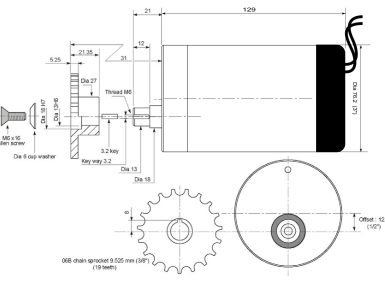

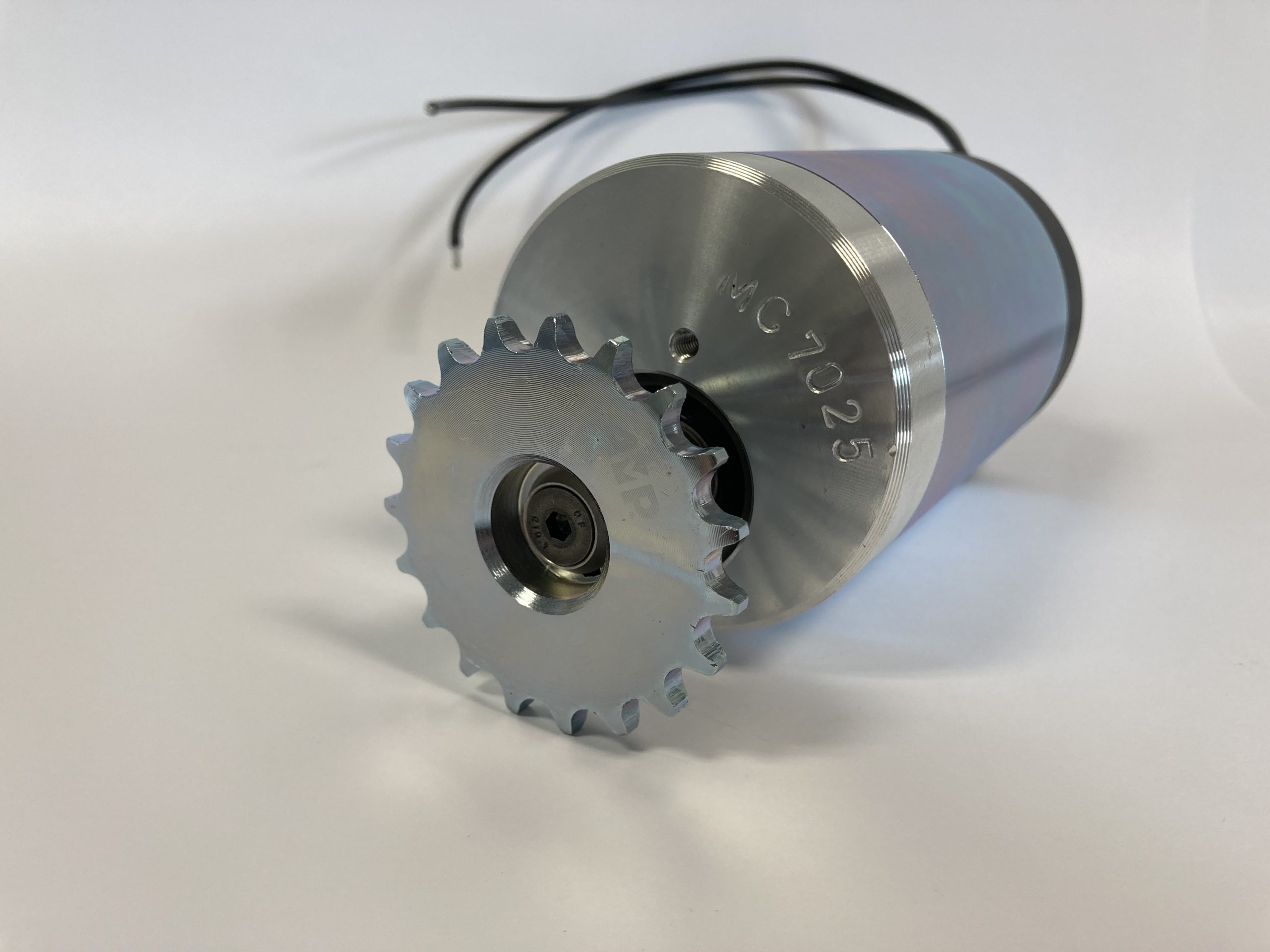

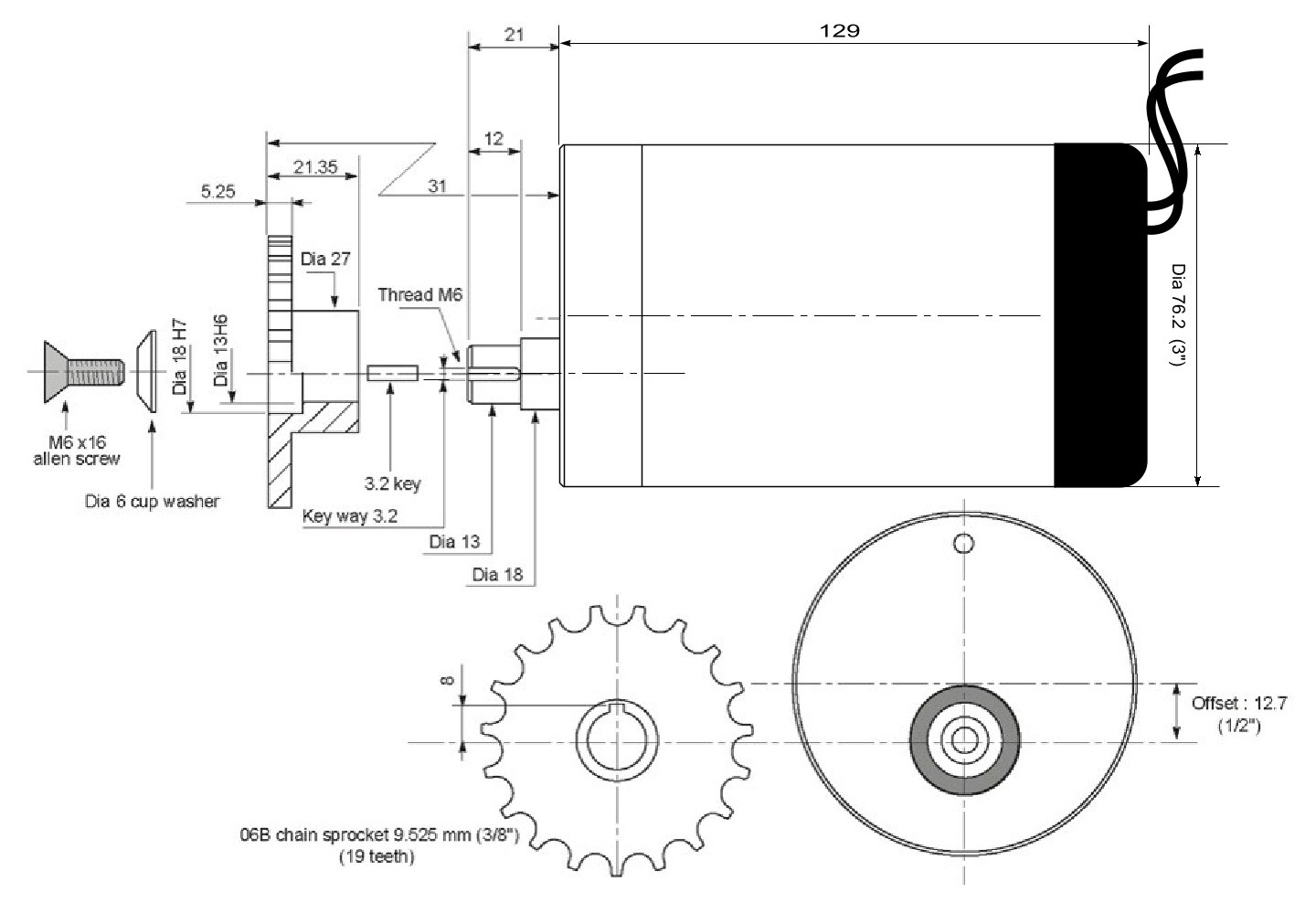

ALTON ACG07 – AJS Matchless

Suitable for AJS Model 16 (M, C …etc), Model 18, 20, 30.
Suitable for Matchless G3, G3L, G3LC, G80, G98, G9B…

The set includes 19 tooth sprocket.
Each generator set comes with its rectifying-regulator.

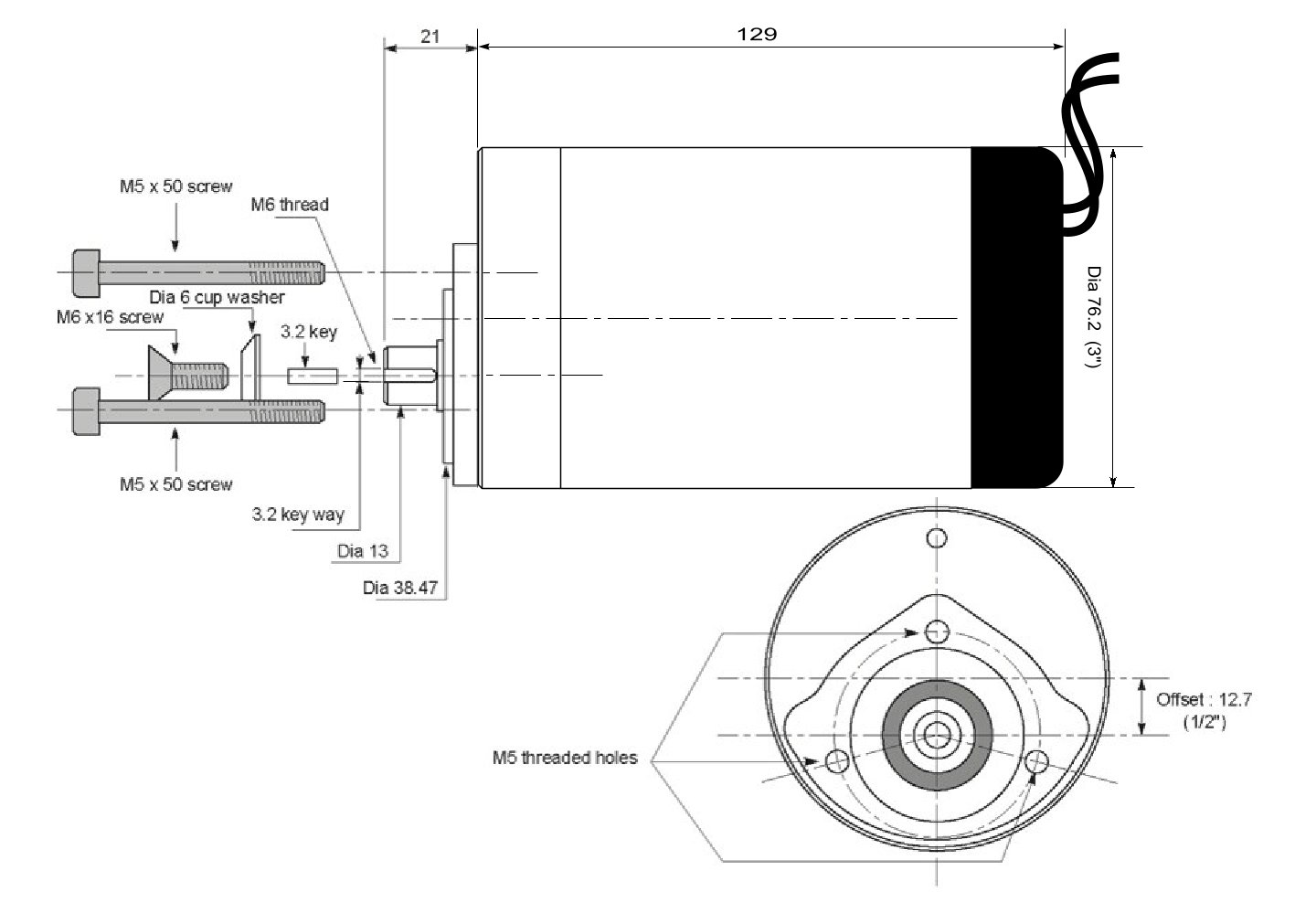

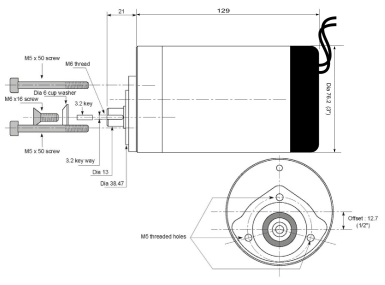

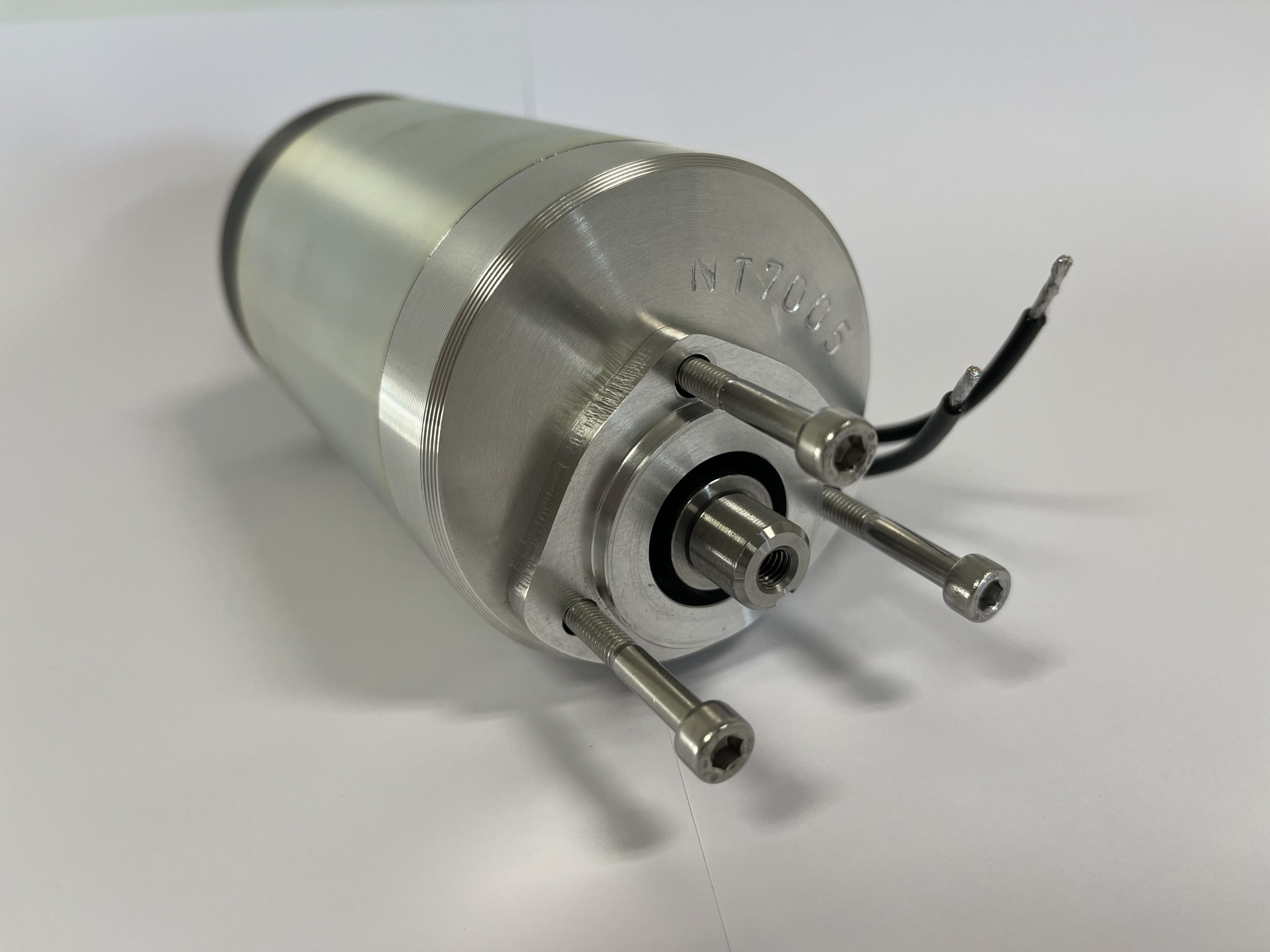

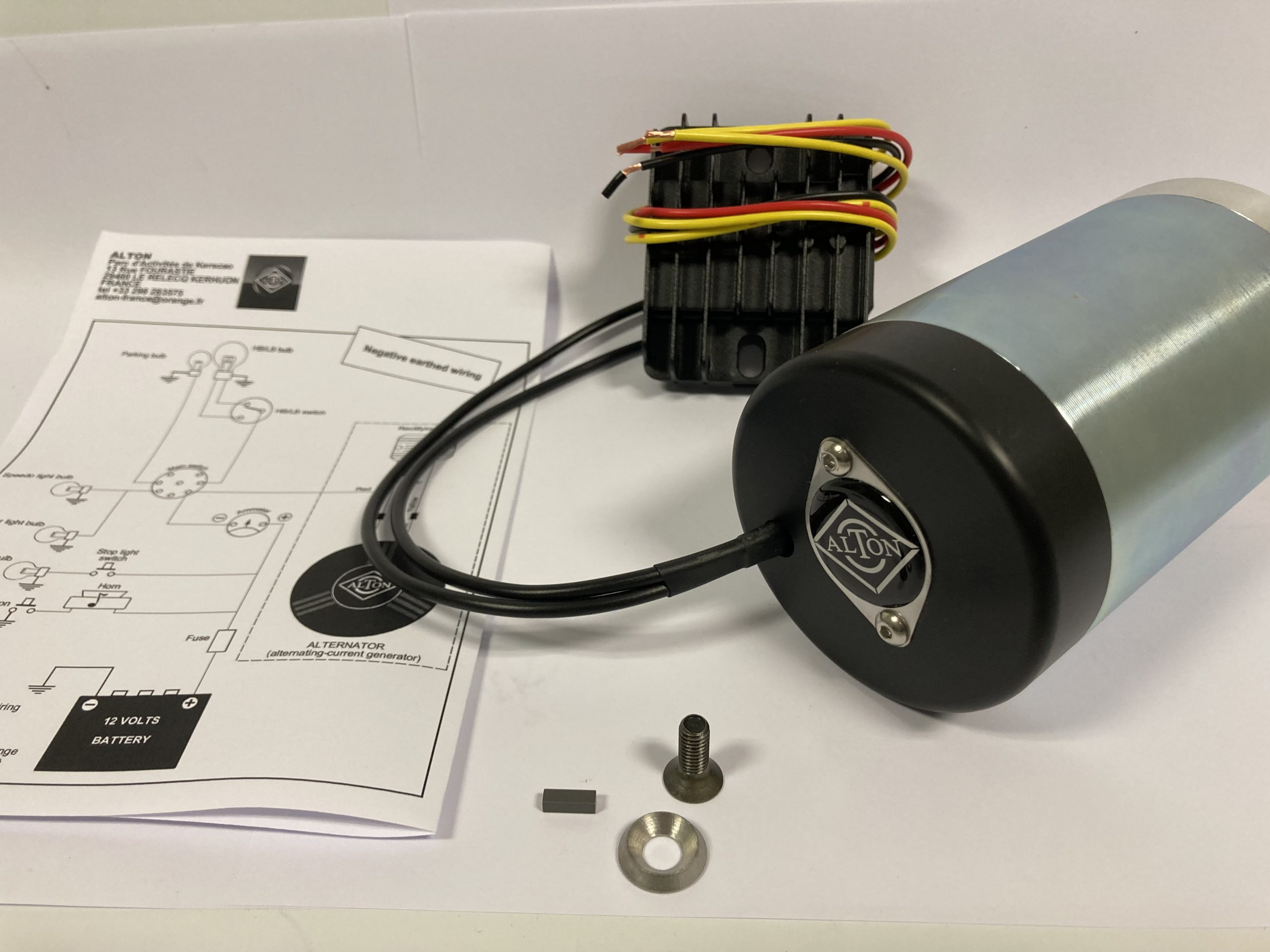

ACG08 – Norton

Suitable for Norton Model 50, Model 7, 77, 88 (up to 1957), 99 (up to 1957)
Suitable for Panther M75.

The set does not includes the drive sprocket.
Each generator set comes with its rectifying-regulator.

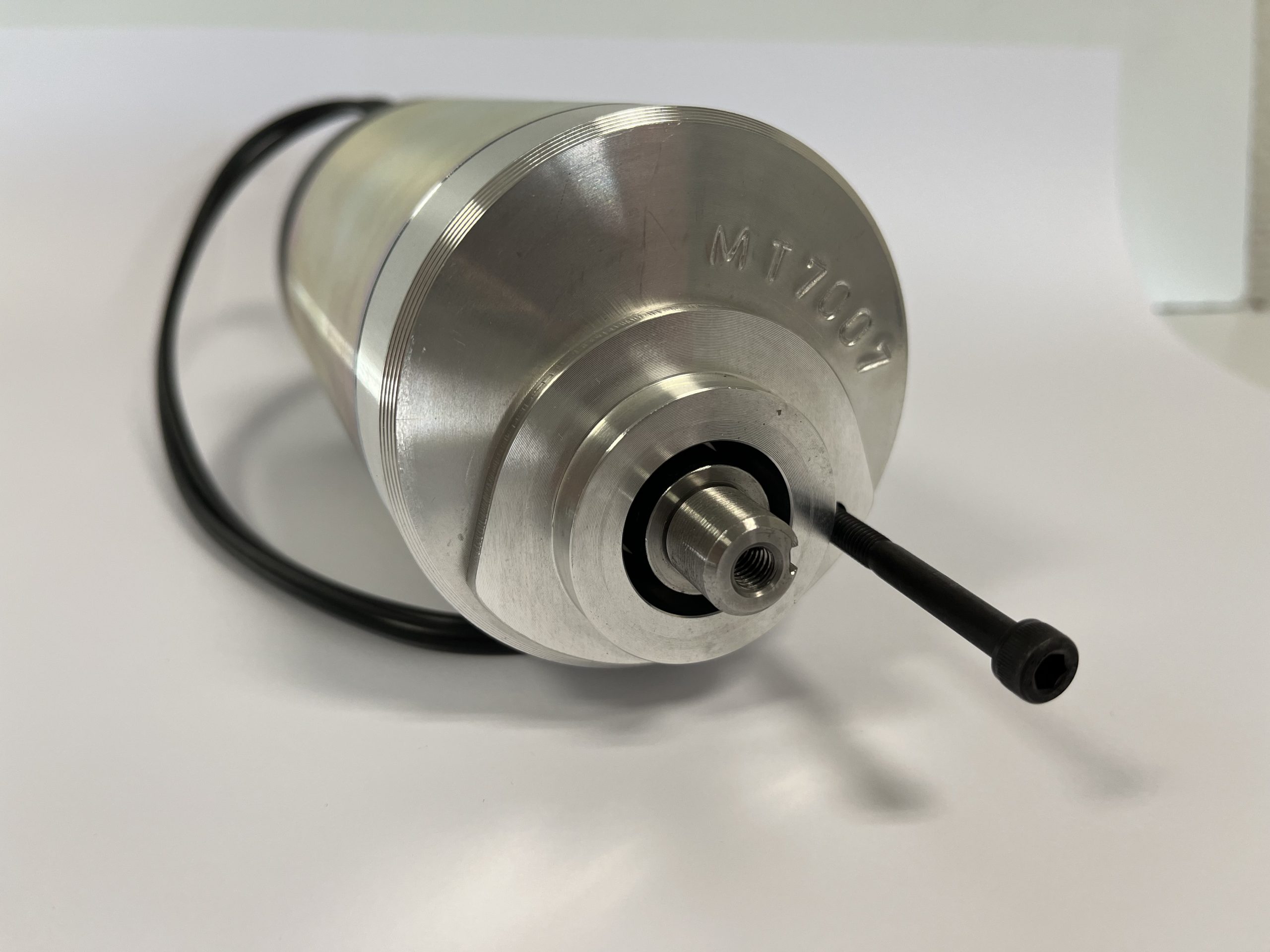

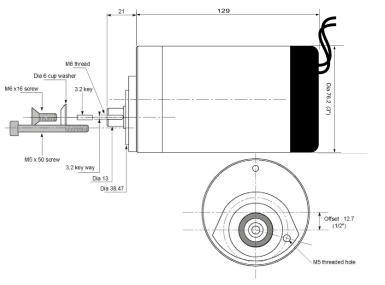

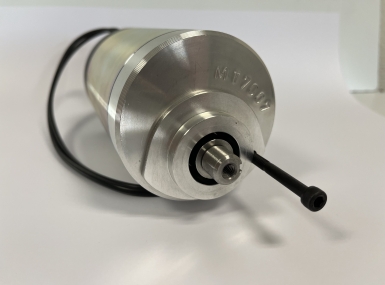

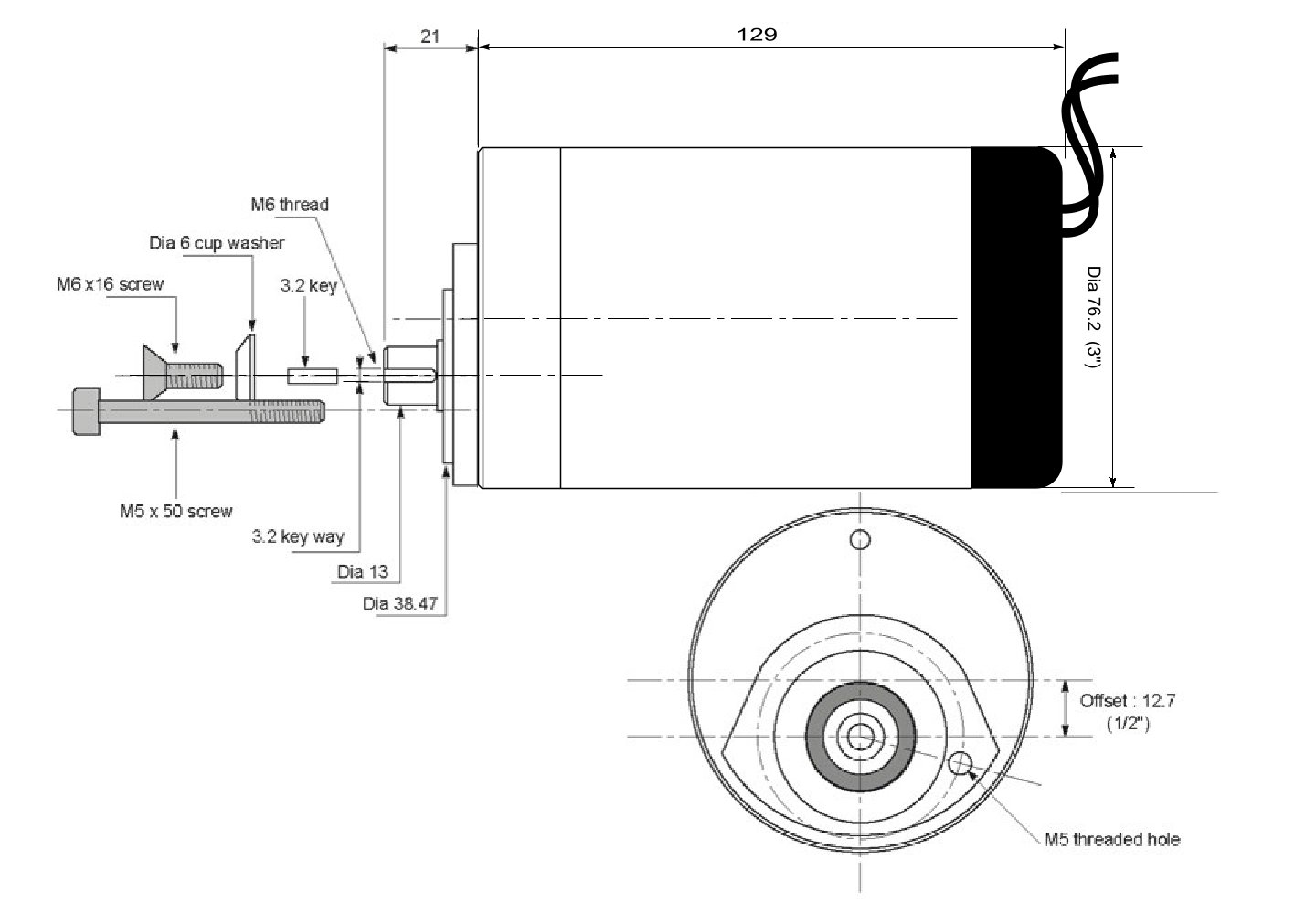

ACG09 – AMC AJS Matchless

Suitable for AJS Model 20, 30.
Suitable for Matchless G9, G9B, G11.

The set does not includes the drive sprocket.
Each generator set comes with its rectifying-regulator.

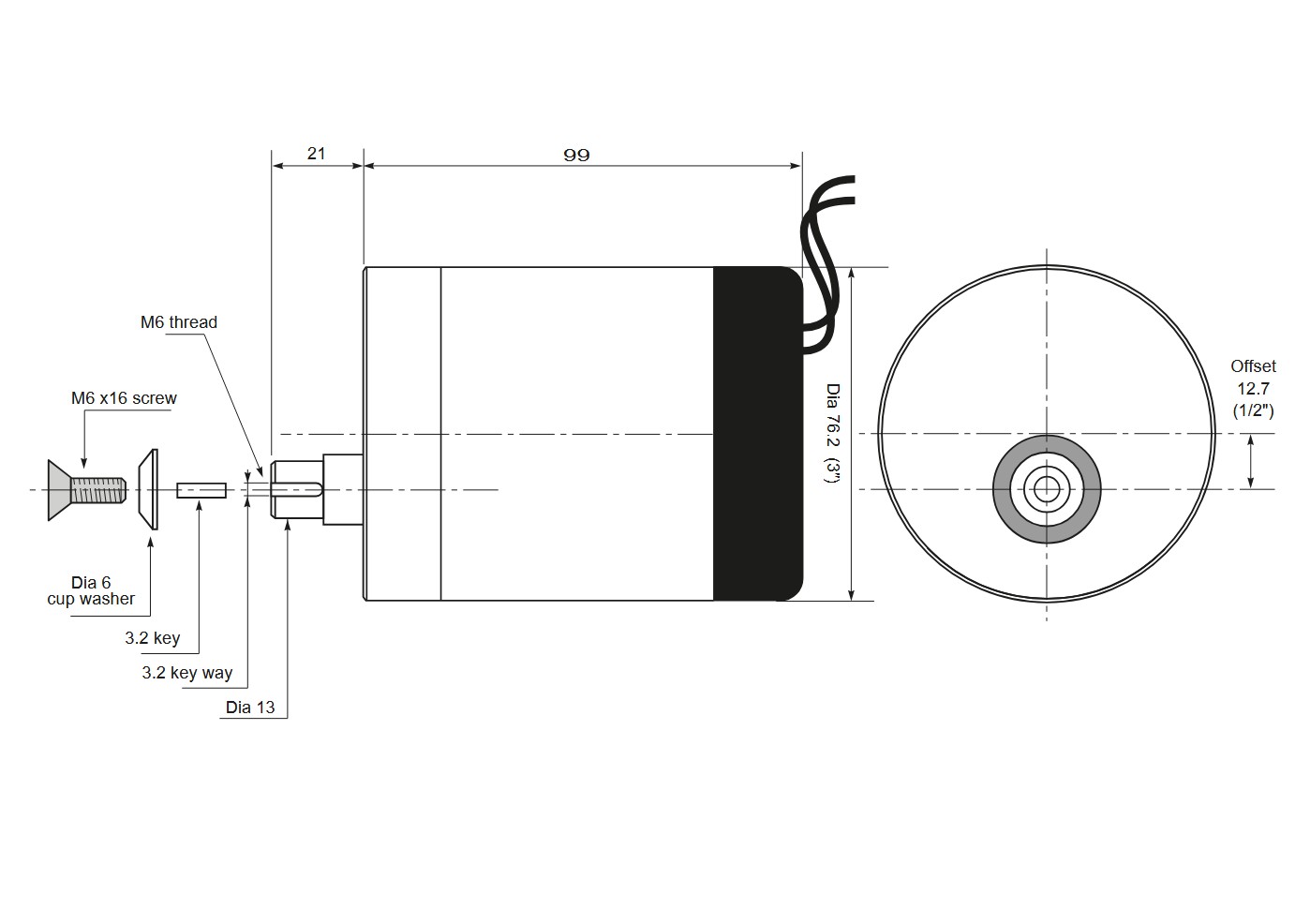

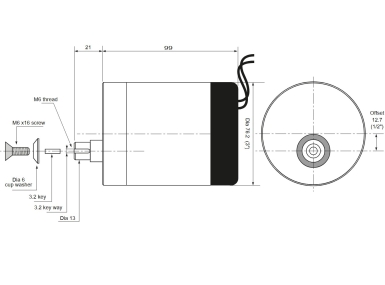

Compact Generator Set

Suitable for specially built motorcycles.
Same performances, 90mm long instead of 135mm.

We can supply driving parts adapted to your purpose.
Each generator set comes with its rectifying-regulator.

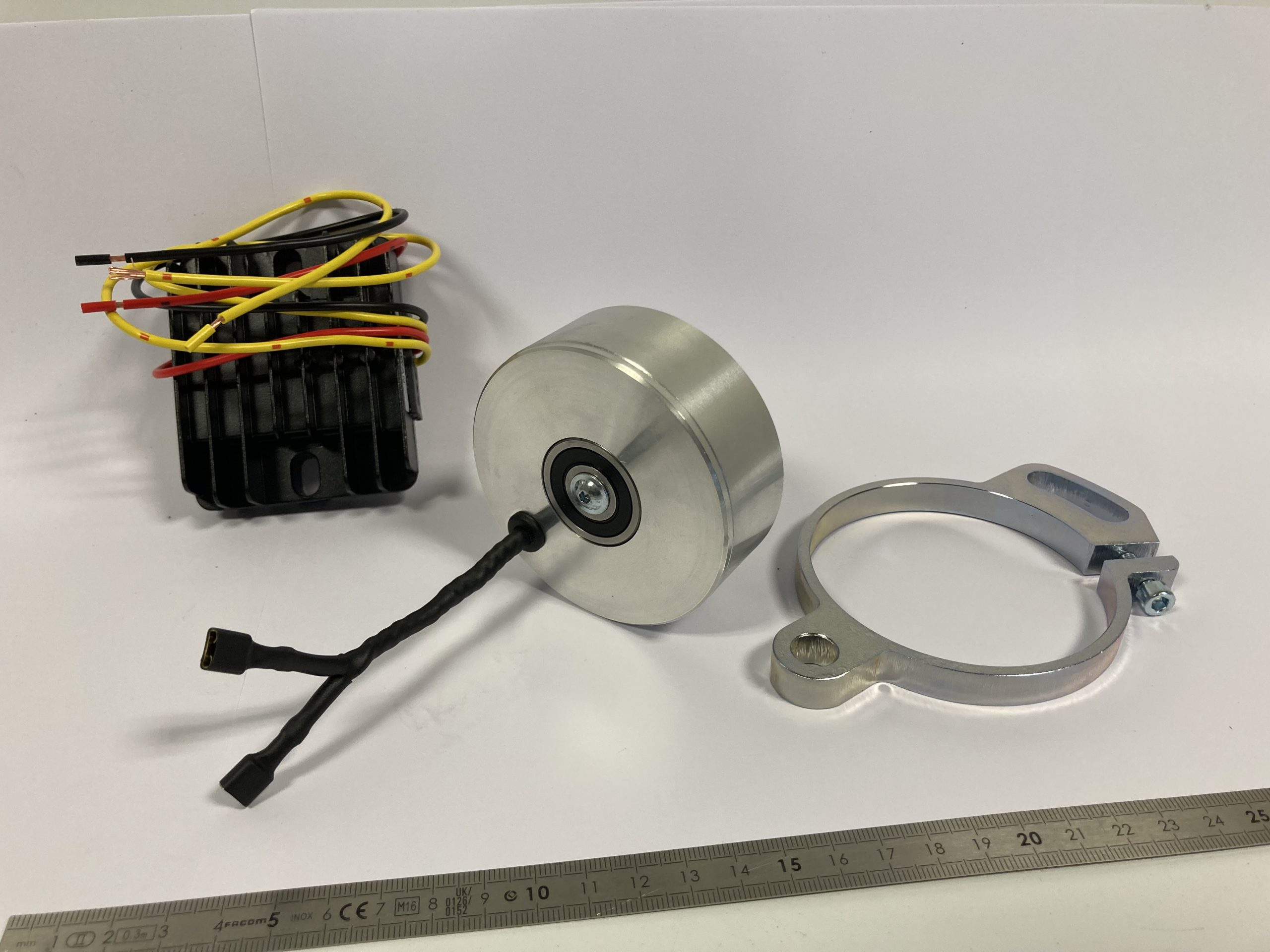

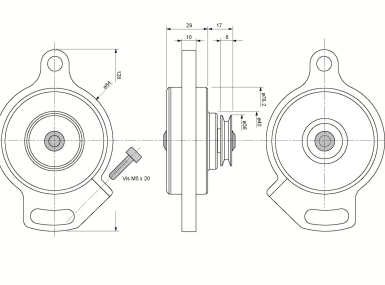

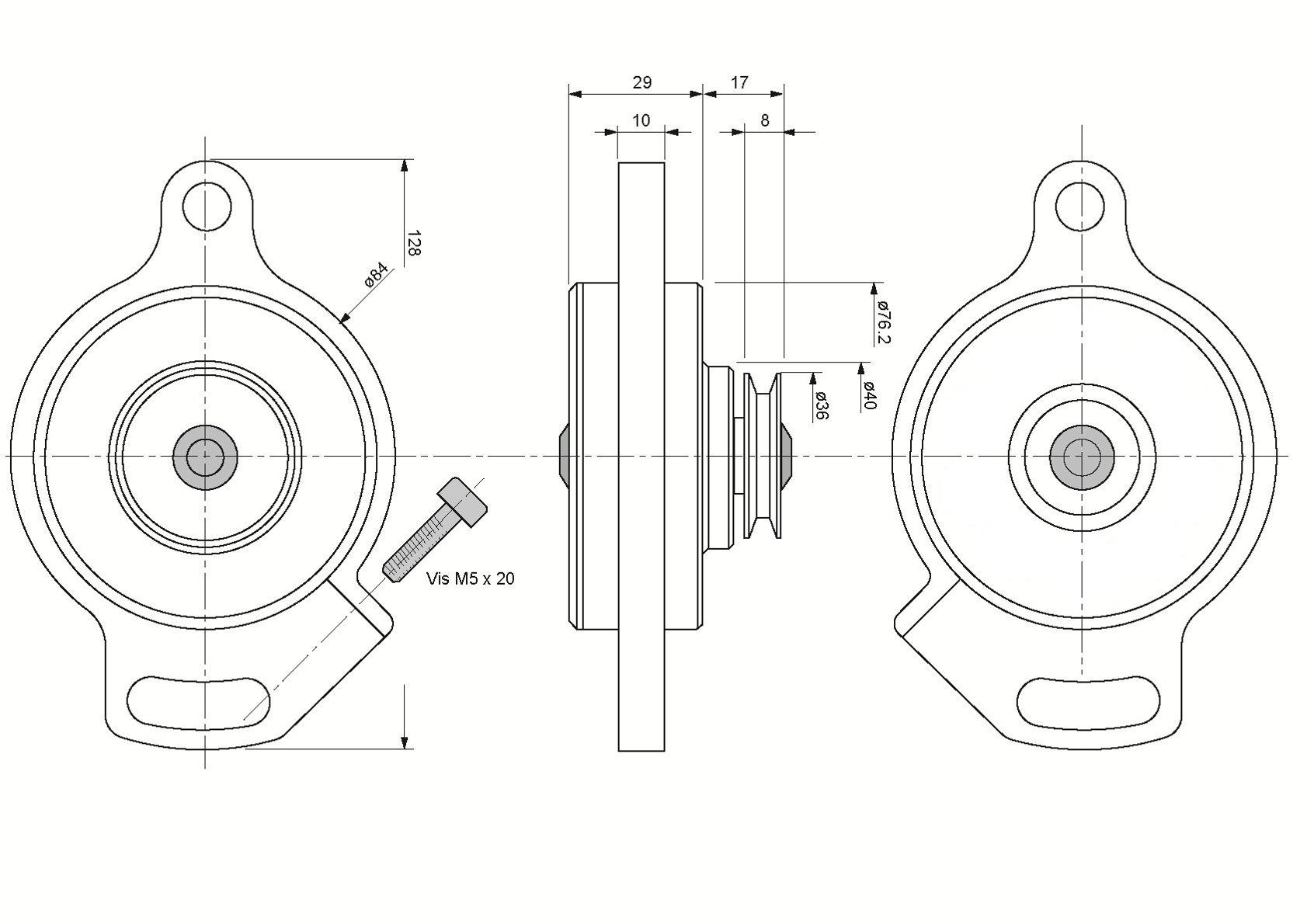

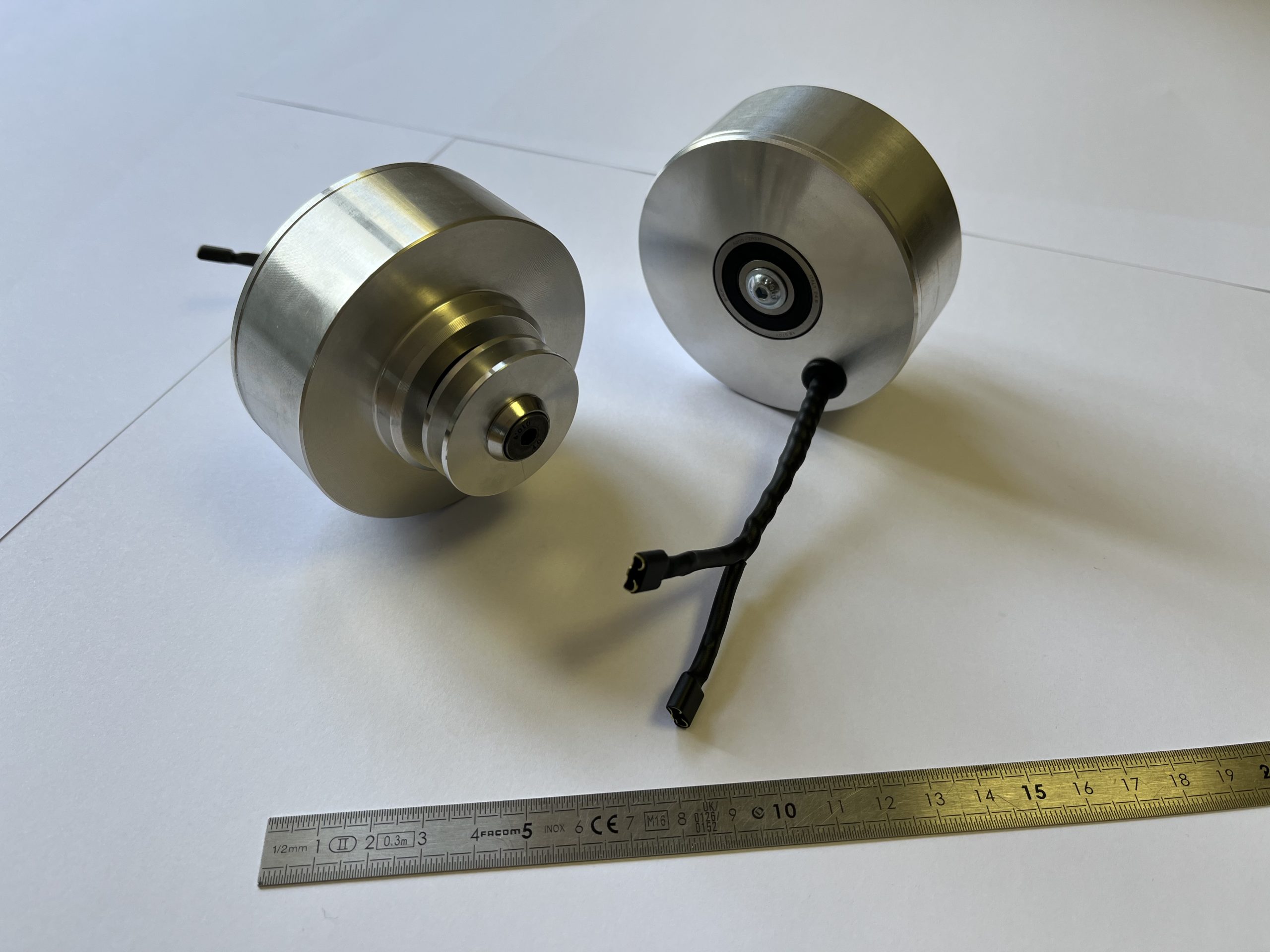

 Super-Mini Generator

Suitable for specially built motorcycles.
Smaller generator of our range of products.

We can supply driving parts adapted to your purpose.
Each generator set comes with its rectifying-regulator.
